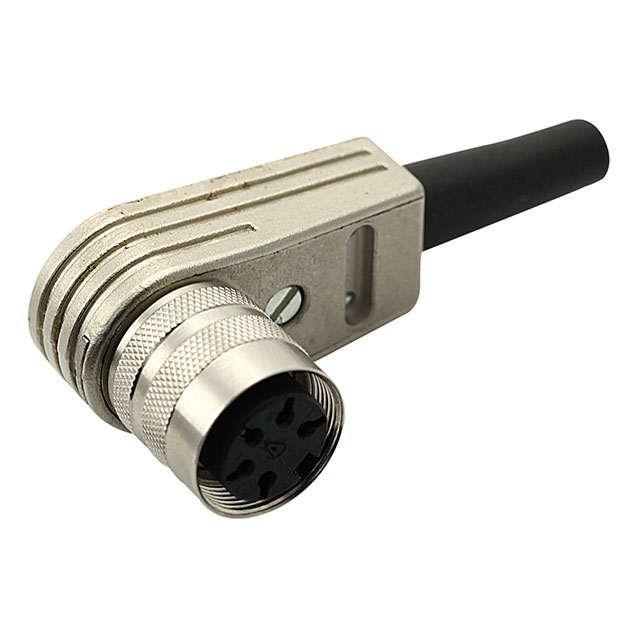

T 3361 005

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 A,B,D Series Catalog Datasheet

T 3361 005

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5P SOLDER CUP

Deep-Dive with AI

DocumentsC091 A,B,D Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T 3361 005

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Voltage Rating	250 VDC

T 3361 Series

Part	Contact Finish - Mating	Orientation	Primary Material	Connector Type	Ingress Protection	Color	Features	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Shell Size - Insert	Shielding	Shell Material	Voltage Rating	Mounting Type	Contact Shape	Material Flammability Rating	Housing Color	Contact Type	Note	Insert Material	Type	Contact Size
Amphenol Tuchel Industrial T 3361 018	Gold	Keyed	Metal	Female Sockets Plug	IP40	Silver	Strain Relief	7 A	100 °C	-40 °C	Nickel	M16-5	Shielded	Die Cast	250 VDC	Free Hanging (In-Line)
Amphenol Tuchel Industrial T 3361 002	Silver	Keyed	Metal	Female Sockets Plug	IP40	Silver	Cable Clamp Strain Relief	7 A	100 °C	-40 °C	Nickel	M16-5	Shielded	Die Cast	250 VDC	Free Hanging (In-Line)
Amphenol Tuchel Industrial T 3361 020	Silver	Keyed	Metal	Female Sockets Plug	IP40	Silver	Cable Clamp Stereo Strain Relief	7 A	100 °C	-40 °C	Nickel	M16-5(S)	Shielded	Die Cast	250 VDC	Free Hanging (In-Line)
Amphenol Tuchel Industrial T 3361 551		Keyed		Plug Housing	IP40		Cable Clamp Coupling Nut Strain Relief		100 °C	-40 °C	Nickel	M16-5	Shielded	Die Cast		Free Hanging (In-Line)	Circular	UL94 V-0	Silver	Crimp	Contacts Not Included	Thermoplastic	For Female Sockets	1.5 mm
Amphenol Tuchel Industrial T 3361 028	Gold	Keyed	Metal	Female Sockets Plug	IP40	Silver	Cable Clamp Strain Relief	7 A	100 °C	-40 °C	Nickel	M16-5	Shielded	Die Cast	250 VDC	Free Hanging (In-Line)
Amphenol Tuchel Industrial T 3361 013	Silver	Keyed	Metal	Female Sockets Plug	IP40	Silver	Strain Relief	7 A	100 °C	-40 °C	Nickel	M16-5	Shielded	Die Cast	250 VDC	Free Hanging (In-Line)
Amphenol Tuchel Industrial T 3361 005	Silver	Keyed	Metal	Female Sockets Plug	IP40	Silver	Strain Relief	7 A	100 °C	-40 °C	Nickel	M16-5	Shielded	Die Cast	250 VDC	Free Hanging (In-Line) Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.58
		10	$ 15.86
		25	$ 14.36
		50	$ 13.35
		100	$ 12.43
		250	$ 11.97

Description

General part information

T 3361 Series

5 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

C091 A,B,D Series Catalog

Datasheet
