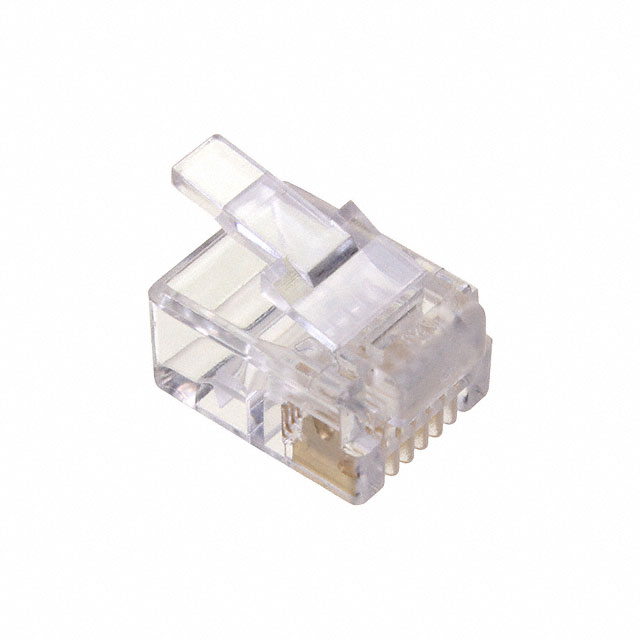

5010-FU0066-005

Active

CnC Tech, LLC

CONN MOD PLUG 6P6C

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN MOD PLUG 6P6C

Technical Specifications

Parameters and characteristics for this part

Specification	5010-FU0066-005

Cable Type	Flat Oval Cable, Not Specified
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Housing Material	Polycarbonate (PC)
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Shielding	Unshielded
Termination	IDC
Voltage Rating	250 VDC

Part	Voltage Rating	Connector Type	Cable Type	Color	Contact Material	Length	Length	Termination	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Shielding	Housing Material	Current Rating (Amps)	Contact Finish	Length [x]	Length [x]	Contact Finish Thickness
CnC Tech, LLC 5010-FU0044-005	250 VDC	Plug	Flat Oval Cable Not Specified	Translucent - Clear	Copper Alloy	13.21 mm	0.52 in	IDC	4p4c	50 µin	1.27 µm	Unshielded	Polycarbonate (PC)	2 A	Gold
CnC Tech, LLC 5010-FU0088-005	250 VDC	Plug	Flat Oval Cable Not Specified	Translucent - Clear	Copper Alloy			IDC	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Unshielded	Polycarbonate (PC)	2 A	Gold	22.64 mm	0.891 in
CnC Tech, LLC 5010-FU0044-001	250 VDC	Plug	Flat Oval Cable Not Specified	Translucent - Clear	Copper Alloy	13.21 mm	0.52 in	IDC	4p4c				Polycarbonate (PC)	2 A	Gold			Flash
CnC Tech, LLC 5010-FU0088-001	250 VDC	Plug	Flat Oval Cable Not Specified	Translucent - Clear	Copper Alloy			IDC	8p8c (RJ45 Ethernet)				Polycarbonate (PC)	2 A	Gold	24.84 mm	0.978 in	Flash
CnC Tech, LLC 5010-FU0066-001	250 VDC	Plug	Round Cable Not Specified	Translucent - Clear	Copper Alloy			IDC	6p6c (RJ11 RJ12 RJ14 RJ25)				Polycarbonate (PC)	2 A	Gold	13.35 mm	0.526 in	Flash
CnC Tech, LLC 5010-FU0066-005	250 VDC	Plug	Flat Oval Cable Not Specified	Translucent - Clear	Copper Alloy			IDC	6p6c (RJ11 RJ12 RJ14 RJ25)	50 µin	1.27 µm	Unshielded	Polycarbonate (PC)	2 A	Gold
CnC Tech, LLC 5010-FU0064-005	250 VDC	Plug	Flat Oval Cable Not Specified	Translucent - Clear	Copper Alloy			IDC	6p4c	50 µin	1.27 µm	Unshielded	Polycarbonate (PC)	2 A	Gold	13.35 mm	0.526 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Position Unshielded IDC
