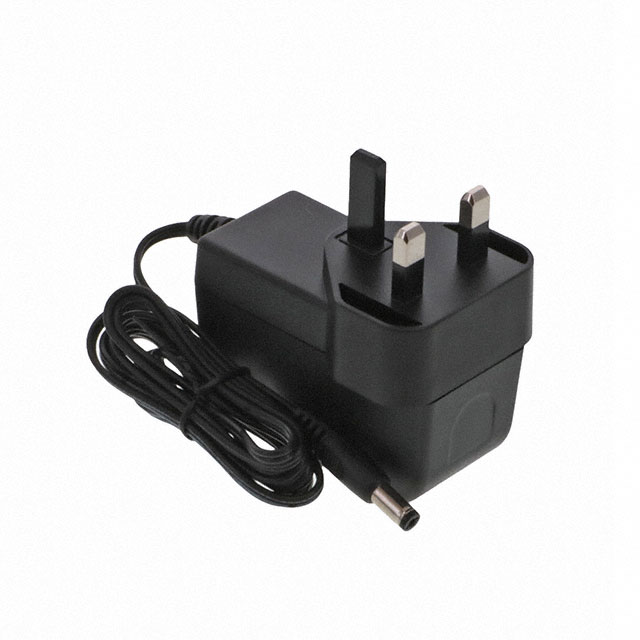

WR95E1500CCP-F(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	WR95E1500CCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	EAC, UKRSepro, CE, SIQ, LPS
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	BS 1363
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	United Kingdom
Size / Dimension [x]	73.5 mm
Size / Dimension [x]	2.89 "
Size / Dimension [y]	1.96 "
Size / Dimension [y]	49.9 mm
Size / Dimension [z]	54 mm
Size / Dimension [z]	2.13 "
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Current - Output (Max) [Max]	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [x]	Power (Watts)	Voltage - Output	Input Connector	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Form	Applications	Input Type	Standard Number	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Cord Length	Cord Length	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	No Load Power Consumption [Max]	Output Connector [z]
GlobTek, Inc. WR95E1500LCP-F(R6B)	1.5 A	United Kingdom	Barrel Plug	2.5 mm 5.5 mm	11 mm	18 W	12 V	BS 1363	CE EAC LPS SIQ UKRSepro	40 °C	0 °C	Wall Mount (Class II)	ITE (Commercial)	Fixed Blade	60950-1	Positive Center	90 VAC	264 VAC	Level VI	1.5 m	59 in	73.5 mm	54 mm	2.89 "	2.13 "	1.96 "	49.9 mm	75 mW
GlobTek, Inc. WR95E1500CCP-F(R6B)	1.5 A	United Kingdom	Barrel Plug	2.1 mm 5.5 mm		18 W	12 V	BS 1363	CE EAC LPS SIQ UKRSepro	40 °C	0 °C	Wall Mount (Class II)	ITE (Commercial)	Fixed Blade	60950-1	Positive Center	90 VAC	264 VAC	Level VI	1.53 m	60.2 in	73.5 mm	54 mm	2.89 "	2.13 "	1.96 "	49.9 mm	75 mW	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
