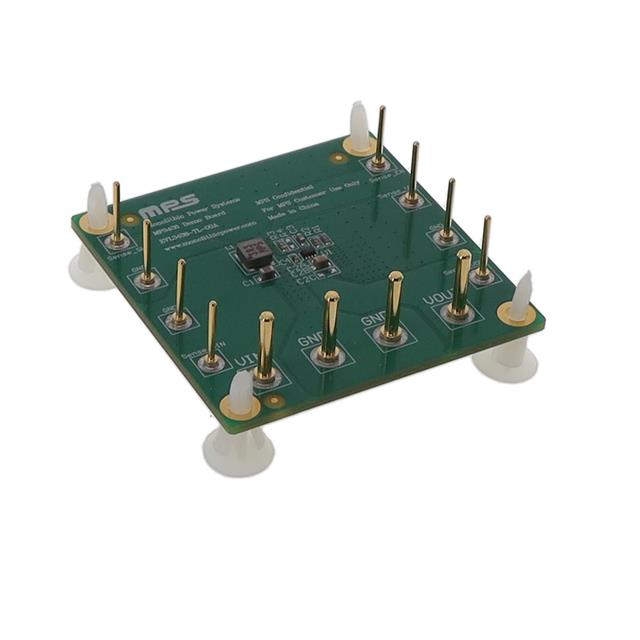

EVL3438-TL-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP3438

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP3438

Technical Specifications

Parameters and characteristics for this part

Part	Topology	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Mounting Type	Voltage - Output (Min/Fixed)	Package / Case	Frequency - Switching	Voltage - Input (Max) [Max]	Voltage - Output (Max)	Voltage - Input (Min) [Min]	Function	Number of Outputs	Supplier Device Package	Current - Output	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Regulator Topology	Supplied Contents	Voltage - Output	Main Purpose	Outputs and Type	Outputs and Type
MONOLITHIC POWER SYSTEMS (MPS) MP3438GTL-P	Boost	Adjustable	-40 °C	125 ¯C	Positive	Surface Mount	16 V	SOT-583	1.2 MHz	16 V	16 V	0.8 V	Step-Up	1	SOT-583
MONOLITHIC POWER SYSTEMS (MPS) MP3438GTL-Z	Boost	Adjustable	-40 °C	125 ¯C	Positive	Surface Mount	16 V	SOT-583	1.2 MHz	16 V	16 V	0.8 V	Step-Up	1	SOT-583
MONOLITHIC POWER SYSTEMS (MPS) EVL3438-TL-00A									1.2 MHz							1.2 A	MP3438	3 V	10 V	Fully Populated	Boost	Board(s)	12 V	DC/DC Step Up	Non-Isolated	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.00

General part information

MP3438 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
