PXP7012/03S/ST

Active

BULGIN LIMITED

CONN RCPT FMALE 3P NICKEL SCREW

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN RCPT FMALE 3P NICKEL SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	PXP7012/03S/ST

Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	25 A
Fastening Type	Bayonet Lock
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 V

Part	Connector Type	Fastening Type	Type	Material Flammability Rating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Housing Color	Primary Material	Shell Material	Shielding	Contact Type	Mounting Feature	Note	Number of Positions	Contact Shape	Includes	Current Rating (Amps)	Contact Material	Termination	Voltage Rating	Color	Contact Finish - Mating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PXP7012/10S/CR	Receptacle Housing	Bayonet Lock	For Female Sockets	UL94 V-0	Keyed	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Gray	Plastic	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Unshielded	Crimp and Solder Cup	Bulkhead - Rear Side Nut	Contacts Not Included	10	Circular	Connector Nut Washer
BULGIN LIMITED PXP7012/03S/ST	Receptacle Female Sockets	Bayonet Lock		UL94 V-0	Keyed	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Plastic	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Unshielded		Bulkhead - Rear Side Nut					25 A	Brass	Screw	600 V	Gray	Nickel	3	1	2
BULGIN LIMITED PXP7012/06P/ST	Male Pins Receptacle	Bayonet Lock		UL94 V-0	Keyed	-40 °C	120 °C	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Plastic	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Unshielded		Bulkhead - Rear Side Nut		6			8 A 10 A	Brass	Screw	600 V	Gray	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

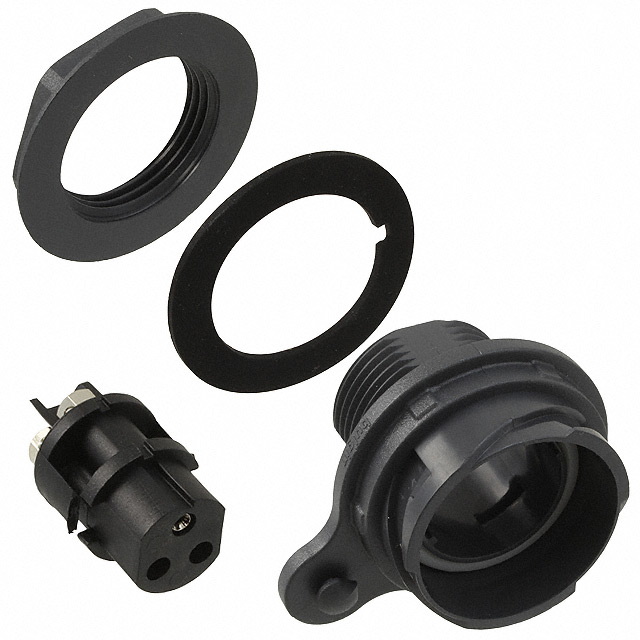

3 (2 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw
