BVL062000003N
ObsoleteSL POWER / Advanced Energy

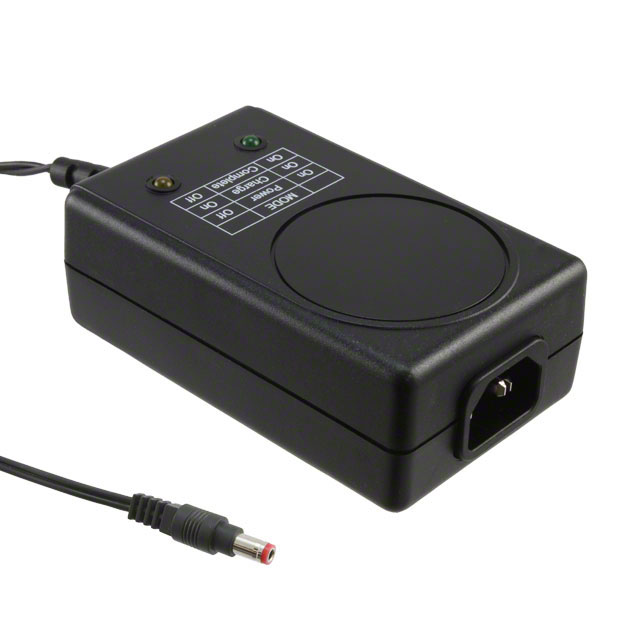

BATT CHARGER DESKTOP 6V 2A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BVL062000003N
ObsoleteSL POWER / Advanced Energy
BATT CHARGER DESKTOP 6V 2A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BVL062000003N |
|---|---|
| Approval Agency | cUL, TUV, CE |
| Battery Cell Size | 6 V |
| Battery Chemistry | Lead Acid |
| Charge Current - Max [Max] | 2 A |
| Features | LED Indicator |
| Mounting Type | Desktop |
| Number of Cells | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 5 °C |
| Power - Max [Max] | 14.7 W |
| Size / Dimension [x] | 4.21 " |
| Size / Dimension [x] | 107 mm |
| Size / Dimension [y] | 2.6 " |
| Size / Dimension [y] | 66 mm |
| Size / Dimension [z] | 37 mm |
| Size / Dimension [z] | 1.46 " |
| Termination Style | Female |
| Termination Style [custom] | 5.5 mm |
| Termination Style [custom] | 2.5 mm |
| Type | Desktop |
| Voltage - Input [Max] | 250 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Nominal | 6 V |
| Weight | 226.8 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 51.06 | |
Description
General part information
BVL062 Series
Desktop Battery Charger 6V 2A 6V
