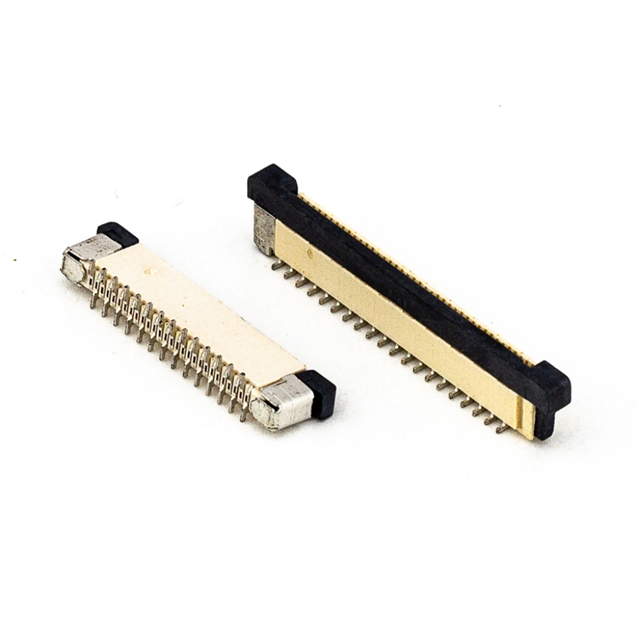

2345-C50TD3AT-S

Active

Oupiin

CONN FFC VERT 50POS 0.5MM SMD

Search across all available documentation for this part.

Active

Oupiin

CONN FFC VERT 50POS 0.5MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	2345-C50TD3AT-S

Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	4.9 mm
Height Above Board [z]	0.193 in
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Termination	FFC, FCB Thickness	Voltage Rating	Housing Material	Contact Finish	Material Flammability Rating	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Contact Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Cable End Type	Mounting Type	Flat Flex Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Oupiin 2345-C50TD3AT-S	Solder	0.3 mm	50 V	Liquid Crystal Polymer (LCP)	Tin	UL94 V-0	0.5 mm	0.02 in	4.9 mm	0.193 in	Contacts Vertical - 1 Sided	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	-25 °C	85 °C	0.5 A	Straight	Surface Mount	FFC FPC	2.54 µm	100 µin	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
