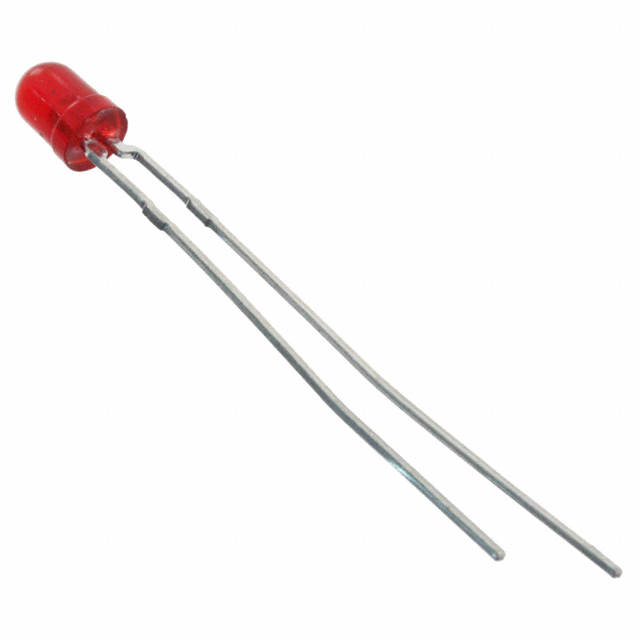

HLMP1700C6A0
ActiveEverlight Electronics Co Ltd
LED RED DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLMP1700C6A0
ActiveEverlight Electronics Co Ltd
LED RED DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMP1700C6A0 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) [Max] [z] | 6.3 mm |
| Lens Color | Red |
| Lens Size [diameter] | 3.1 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 2 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-100 |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.11 | |||
| Tape & Box (TB) | 1500 | $ 0.09 | ||
| 3000 | $ 0.08 | |||
| 7500 | $ 0.08 | |||
| 10500 | $ 0.07 | |||
| 37500 | $ 0.07 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
HLMP1700 Series
Red LED Indication - Discrete 1.8V Radial
