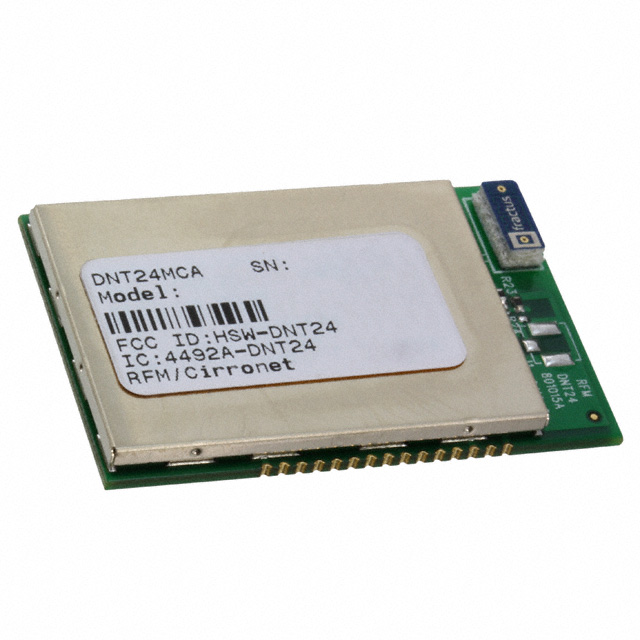

DNT24MCA

Active

Murata Power Solutions Inc.

RF TXRX MOD ISM>1GHZU.FL SMD

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

RF TXRX MOD ISM>1GHZU.FL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Package / Case	Power - Output	Sensitivity	Current - Receiving [Min]	Current - Receiving [Max]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Family/Standard	Serial Interfaces	Antenna Type	Current - Transmitting	Modulation
Murata Power Solutions Inc. DNT24PA	2.4 GHz	85 °C	-40 °C	500 kbps	Module	18 dBm	-100 dBm	15 mA	55 mA	Through Hole	3.3 V	5.5 V	General ISM > 1GHz	SPI UART	Antenna Not Included U.FL	140 mA	FHSS FSK
Murata Power Solutions Inc. DNT24MCA	2.4 GHz	85 °C	-40 °C	500 kbps	30-SMD Module	18 dBm	-100 dBm	15 mA	55 mA	Surface Mount	3.3 V	5.5 V	General ISM > 1GHz	SPI UART	Antenna Not Included U.FL	140 mA	FHSS FSK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 52.32

General part information

General ISM > 1GHz Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
