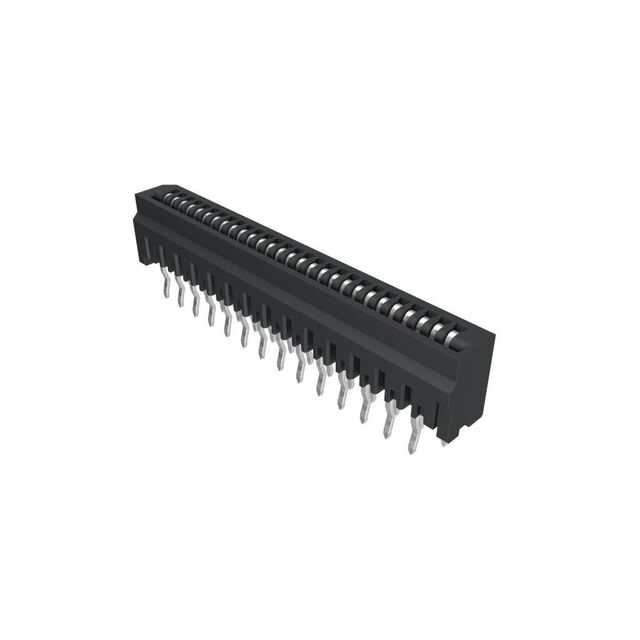

HLW28S-2C7LF

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 28POS 1MM PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 28POS 1MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	HLW28S-2C7LF

Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.33 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	5.9 mm
Height Above Board [z]	0.232 in
Housing Color	Black
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	30
Mounting Type	Through Hole
Number of Positions	28
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

Part	Termination	Pitch [x]	Pitch [x]	Connector/Contact Type	Number of Positions	Housing Color	FFC, FCB Thickness	Housing Material	Contact Material	Material Flammability Rating	Flat Flex Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Finish
Amphenol ICC (FCI) HLW28S-2C7LF	Kinked Pin	0.039 in	1 mm	Contacts Vertical - 1 Sided	28	Black	0.33 mm	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	UL94 V-0	FFC FPC	100 V	85 °C	-55 °C	30	5.9 mm	0.232 in	Through Hole	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

28 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
