15-002213

Active

Amphenol CONEC

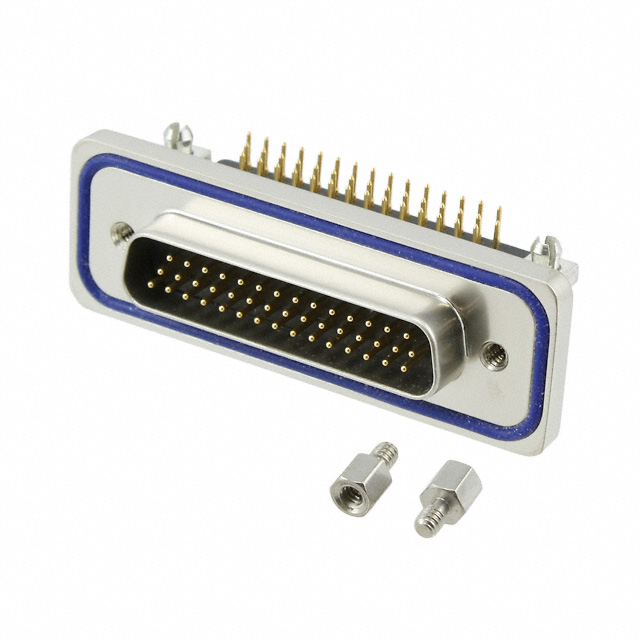

CONN D-SUB HD PLUG 44P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

15-002213

Active

Amphenol CONEC

CONN D-SUB HD PLUG 44P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15-002213

Backset Spacing	5.6 mm
Backset Spacing	0.22 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Zinc Die Cast
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder
Voltage Rating	60 VDC

15-0022 Series

Part	Color	Termination	Voltage Rating	Contact Type	Contact Finish	Number of Positions	Ingress Protection	Flange Feature	Number of Rows	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Style	Contact Material	Dielectric Material	Connector Type	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [x]
Amphenol CONEC 15-002203	Black	Solder	60 VDC	Signal	Gold	26	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	3	Board Edge Right Angle Through Hole	2	(DA A) High Density	UL94 V-0	3 A	8 çin	0.203 çm	Board Lock Mounting Brackets	D-Sub High Density	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	Nickel Plated Zinc Die Cast	-25 °C	105 ░C	5.6 mm	0.22 in
Amphenol CONEC 15-002223	Black	Solder	60 VDC	Signal	Gold	62	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	3	Board Edge Right Angle Through Hole	4		UL94 V-0	3 A	8 çin	0.203 çm	Board Lock Mounting Brackets	D-Sub High Density	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	Nickel Plated Zinc Die Cast	-25 °C	105 ░C	5.6 mm	0.22 in
Amphenol CONEC 15-002253	Black	Solder	60 VDC	Signal	Gold	26	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	3	Board Edge Right Angle Through Hole	2	(DA A) High Density	UL94 V-0	3 A	8 çin	0.203 çm	Board Lock Mounting Brackets	D-Sub High Density	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Nickel Plated Zinc Die Cast	-25 °C	105 ░C	5.6 mm	0.22 in
Amphenol CONEC 15-002243	Black	Solder	60 VDC	Signal	Gold	15	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	3	Board Edge Right Angle Through Hole			UL94 V-0	3 A	8 çin	0.203 çm	Board Lock Mounting Brackets	D-Sub High Density	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Nickel Plated Zinc Die Cast	-25 °C	105 ░C	5.6 mm	0.22 in	DE E	1	High Density
Amphenol CONEC 15-002213	Black	Solder	60 VDC	Signal	Gold	44	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	3	Board Edge Right Angle Through Hole			UL94 V-0	3 A	8 çin	0.203 çm	Board Lock Mounting Brackets	D-Sub High Density	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	Nickel Plated Zinc Die Cast	-25 °C	105 ░C	5.6 mm	0.22 in	B DB			3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.44
		10	$ 54.67
		25	$ 49.68
		50	$ 46.31
		100	$ 43.26
		250	$ 39.67

Description

General part information

15-0022 Series

44 Position D-Sub, High Density Plug, Male Pins Connector
