G823J201240BHR

Active

Amphenol ICC (Commercial Products)

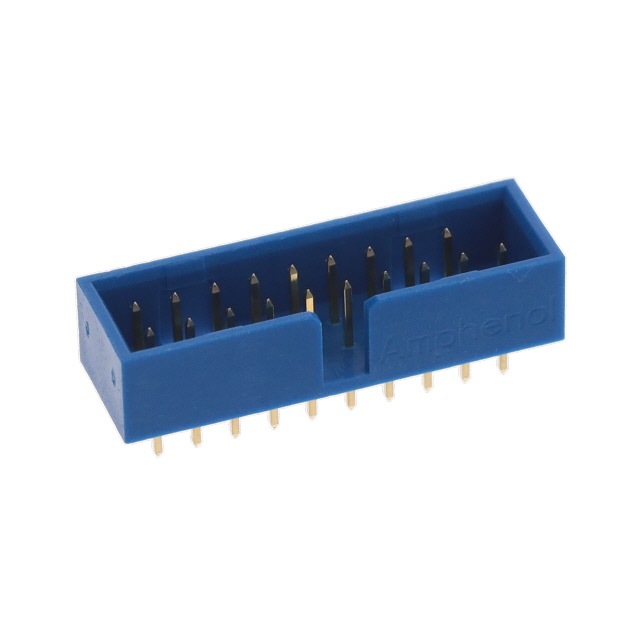

BOX HEADER FOR USB 3.0,2.0MM PIT

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

BOX HEADER FOR USB 3.0,2.0MM PIT

Technical Specifications

Parameters and characteristics for this part

Specification	G823J201240BHR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	15 µin
Contact Finish Thickness - Post	0.38 µm
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.5 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Blue
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Material	Style	Contact Length - Mating	Contact Length - Mating	Number of Positions	Current Rating (Amps)	Contact Type	Features	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Termination	Mounting Type	Shrouding	Number of Rows	Contact Finish - Mating	Insulation Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Material Flammability Rating
Amphenol ICC (Commercial Products) G823J201240BHR	Copper Alloy	Board to Cable/Wire	4 mm	0.157 in	19	1.5 A	Male Pin	Keying Slot	Square	0.079 in	2 mm	Blue	Solder	Through Hole	Shrouded - 4 Wall	2	Gold	Nylon 9T Polyamide (PA9T)	Push-Pull	15 µin	0.38 µm	Header	0.197 in	5 mm	0.079 in	2 mm	Gold	15 µin	0.38 µm	2.5 mm	0.098 in	-25 °C	85 °C	All	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 19 position 0.079" (2.00mm)
