MPL-AL4020-R82

Active

MONOLITHIC POWER SYSTEMS (MPS)

FIXED IND 820NH 8.4A 9 MOHM SMD

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

FIXED IND 820NH 8.4A 9 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Shielding	Current Rating (Amps)	DC Resistance (DCR)	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Inductance
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL4020-1R5	Surface Mount	Unshielded	6.4 A	14.5 mOhm	100 kHz	2.1 mm	0.083 "	-40 °C	155 °C	Molded	7.1 A	0.161 in	4.1 mm	4.1 mm	0.161 in	2-SMD	1.5 µH
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL4020-R47	Surface Mount	Unshielded	9.2 A	6.2 mOhm	100 kHz	2.1 mm	0.083 "	-40 °C	155 °C	Molded	12.5 A	0.161 in	4.1 mm	4.1 mm	0.161 in	2-SMD	470 nH
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL4020-1R0	Surface Mount	Unshielded	7.9 A	10.1 mOhm	100 kHz	2.1 mm	0.083 "	-40 °C	155 °C	Molded	8.6 A	0.161 in	4.1 mm	4.1 mm	0.161 in	2-SMD	1 µH
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL4020-R68	Surface Mount	Unshielded	8.7 A	7.5 mOhm	100 kHz	2.1 mm	0.083 "	-40 °C	155 °C	Molded	11 A	0.161 in	4.1 mm	4.1 mm	0.161 in	2-SMD	0.68 µH
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL4020-R82	Surface Mount	Unshielded	8.4 A	9 mOhm	100 kHz	2.1 mm	0.083 "	-40 °C	155 °C	Molded	9.5 A	0.161 in	4.1 mm	4.1 mm	0.161 in	2-SMD	820 nH
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL4020-2R2	Surface Mount	Unshielded	5.5 Amps		100 kHz	2.1 mm	0.083 "	-40 °C	155 °C	Molded	6.2 A	0.161 in	4.1 mm	4.1 mm	0.161 in	2-SMD	2.2 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

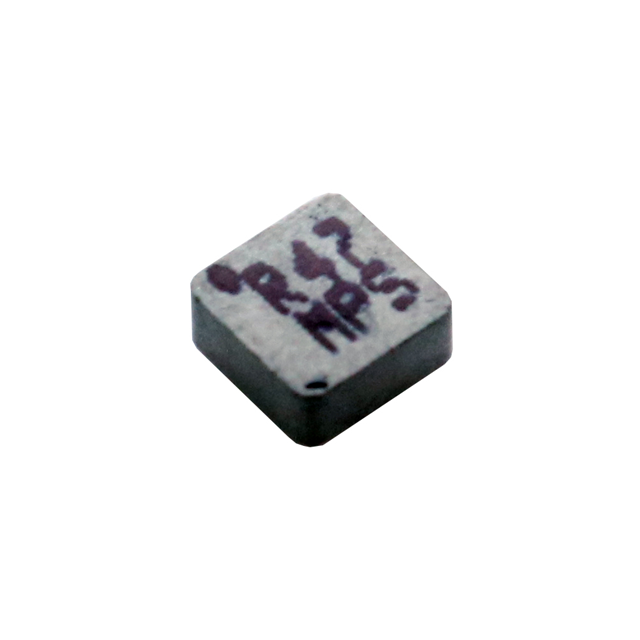

820 nH Unshielded Molded Inductor 8.4 A 9mOhm 2-SMD
