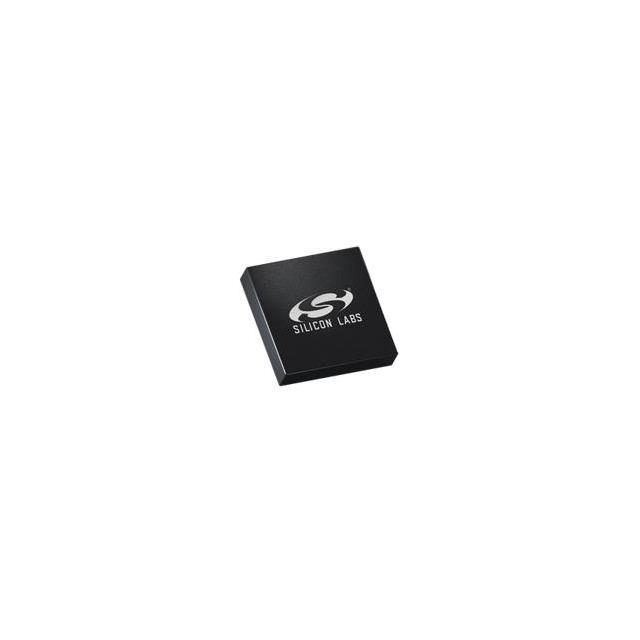

BGM240SA22VNA2R

Active

Silicon Labs

RF TXRX MOD BLUETOOTHCHIP SMD

Search across all available documentation for this part.

Active

Silicon Labs

RF TXRX MOD BLUETOOTHCHIP SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BGM240SA22VNA2R

Antenna Type	Antenna Not Included, Chip, Integrated
Current - Receiving [Max]	5.8 mA
Current - Receiving [Min]	5 mA
Current - Transmitting	23.4 mA
Data Rate	2 Mbps
Frequency	2.4 GHz
Memory Size	256 kB, 1.5 MB
Modulation	GFSK
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	48-LFLGA Exposed Pad
Power - Output	10 dBm
Protocol	Bluetooth v5.3
RF Family/Standard	Bluetooth
Sensitivity	-105.1 dBm
Serial Interfaces	USART, IrDA, I2S, PWM, JTAG, SPI, UART, GPIO, I2C
Utilized IC / Part	EFR32BG24
Voltage - Supply [Max]	3.8 V
Voltage - Supply [Min]	1.8 V

Part	Protocol	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Utilized IC / Part	Modulation	Package / Case	Power - Output	Current - Transmitting	Operating Temperature [Min]	Operating Temperature [Max]	Data Rate	Antenna Type	Serial Interfaces	RF Family/Standard	Frequency	Sensitivity	Current - Receiving [Max]	Current - Receiving [Min]
Silicon Labs BGM240PA22VNA3R
Silicon Labs BGM240PB32VNN3R
Silicon Labs BGM240PB22VNA3R
Silicon Labs BGM240PA32VNA3R
Silicon Labs BGM240SA22VNA2R	Bluetooth v5.3	Surface Mount	1.8 V	3.8 V	1.5 MB 256 kB	EFR32BG24	GFSK	48-LFLGA Exposed Pad	10 dBm	23.4 mA	-40 °C	105 ░C	2 Mbps	Antenna Not Included Chip Integrated	GPIO I2C I2S IrDA JTAG PWM SPI UART USART	Bluetooth	2.4 GHz	-105.1 dBm	5.8 mA	5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 7.29

General part information

Bluetooth Bluetooth v5.3 Transceiver Module 2.4GHz Antenna Not Included, Integrated, Chip Surface Mount
