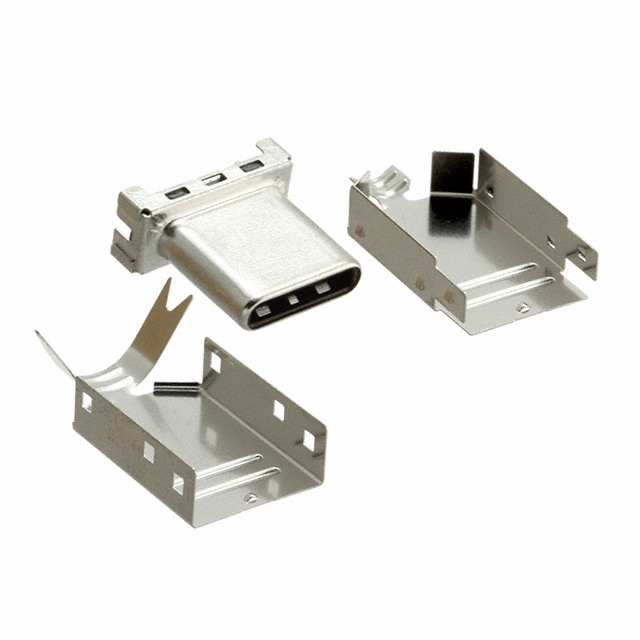

C-BW30-AK5V50
ObsoleteCnC Tech, LLC
CONN PLUG USB3.1 TYPEC 24POS SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C-BW30-AK5V50
ObsoleteCnC Tech, LLC
CONN PLUG USB3.1 TYPEC 24POS SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C-BW30-AK5V50 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Gender | Plug |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Shell/Shielding Material | Stainless, Steel |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.38 | |
| 10 | $ 4.88 | |||
| 25 | $ 4.63 | |||
| 50 | $ 4.52 | |||
| 100 | $ 4.30 | |||
| 250 | $ 3.76 | |||
Description
General part information
C-BW30-AK Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Free Hanging (In-Line)
