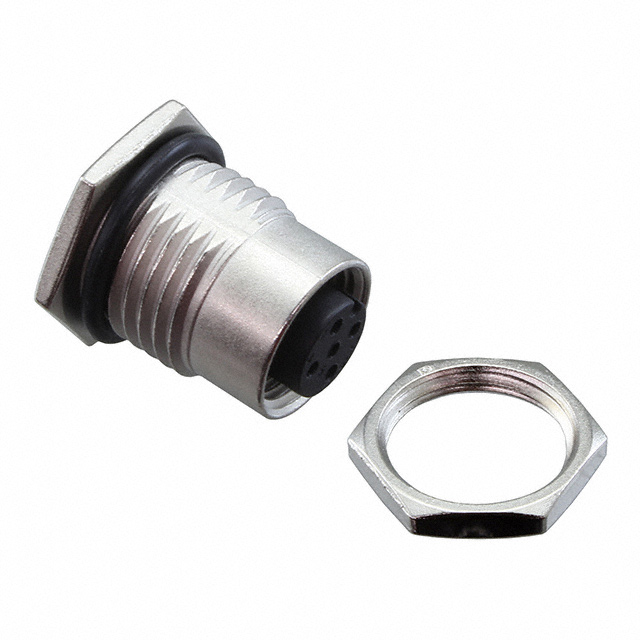

M12A-05PFFS-SF8001
ActiveAmphenol LTW
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12A-05PFFS-SF8001
ActiveAmphenol LTW
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-05PFFS-SF8001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Voltage Rating | 60 VAC |
M12A-05PFFS Series
| Part | Voltage Rating | Shell Material | Shell Size - Insert | Current Rating (Amps) | Insert Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Shielding | Ingress Protection | Contact Material | Orientation | Color | Contact Finish - Mating | Mounting Feature | Primary Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | 60 VAC | Zinc Alloy | M12-5 | 4 A | Polyamide (PA) Nylon Glass Filled | Receptacle Female Sockets | -40 °C | 105 ░C | Nickel | Shielded | IP68 IP69K | Copper Alloy | A | Silver | Gold | Bulkhead - Rear Side Nut | Metal | |
Amphenol LTW | 60 VAC | Zinc Alloy | M12-5 | 4 A | Polyamide (PA) Nylon Glass Filled | Receptacle Female Sockets | -40 °C | 105 ░C | Nickel | Shielded | IP68 IP69K | Copper Alloy | A | Silver | Gold | Bulkhead - Front Side Nut | Metal | Panel Mount Through Hole |
Amphenol LTW | 60 VAC | Zinc Alloy | M12-5 | 4 A | Polyamide (PA) Nylon Glass Filled | Receptacle Female Sockets | -40 °C | 105 ░C | Nickel | Shielded | IP68 IP69K | Copper Alloy | A | Silver | Gold | Bulkhead - Rear Side Nut | Metal | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.34 | |
| 10 | $ 7.93 | |||
| 25 | $ 7.16 | |||
| 40 | $ 6.81 | |||
| 80 | $ 6.32 | |||
| 230 | $ 5.66 | |||
| 440 | $ 5.31 | |||
| 945 | $ 4.93 | |||
Description
General part information
M12A-05PFFS Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
