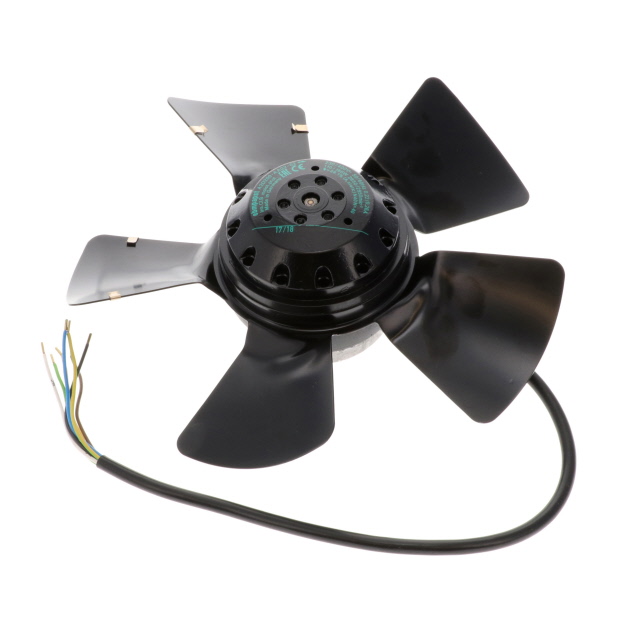

A2D250-AA02-02

Active

ebm-papst Inc.

AC AXIAL FAN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A2D250-AA02-02

Active

ebm-papst Inc.

AC AXIAL FAN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A2D250-AA02-02

Air Flow	30.43 m³/min
Air Flow	1086.7 CFM
Approval Agency	CCC, EAC, CE
Bearing Type	Ball
Current Rating (Amps)	0.26 A
Fan Type	Tubeaxial, 3 Phase
Ingress Protection	IP44
Material - Blade	Steel
Noise	75 dB(A)
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	160 W
RPM	2950 RPM
Size / Dimension [diameter]	250 mm
Static Pressure	1.204 in H2O
Static Pressure	300 Pa
Termination	7 Wire Leads with Splice Terminals
Voltage - Rated	400 VAC
Width [y]	83 mm

A2D250 Series

Part	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Voltage - Rated	Size / Dimension [diameter]	Fan Type	Air Flow	Air Flow	Bearing Type	Static Pressure	Static Pressure	Noise	Current Rating (Amps)	Power (Watts)	Termination	Material - Blade	Width [y]	Ingress Protection	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Features	Weight	Weight	Voltage - Rated [Max] [custom]	Voltage - Rated [Min] [custom]	Voltage - Rated [Max]	Voltage - Rated [Min]
ebm-papst Inc. A2D250-AA02-01	CCC CE EAC	-25 °C	40 °C	40 °C	-25 °C	2950 RPM	400 VAC	250 mm	Tubeaxial 3 Phase	992.5 CFM	27.79 m³/min	Ball	1.204 in H2O	300 Pa	72 dB(A)	0.26 A	160 W	7 Wire Leads with Splice Terminals	Steel	83 mm	IP44
ebm-papst Inc. A2D250-AH02-01	CCC CE EAC					2650 RPM	230 VAC 400 VAC	250 mm	Tubeaxial 3 Phase	1077.9 CFM	30.18 mł/min	Ball	0.602 in H2O	150 Pa			145 W	7 Wire Leads with Splice Terminals	Steel	83 mm	IP44	0.39 A	0.23 A	Dual Voltage
ebm-papst Inc. A2D250-AI14-10	CE CSA UL	-25 °C	60 °C			2580 RPM	480 VAC	250 mm	Tubeaxial 3 Phase			Ball	0.44 in H2O	109.6 Pa		0.38 A	140 W	4 Wire Leads with Splice Terminals	Steel	83 mm	IP44
ebm-papst Inc. A2D250-AD26-05	CCC CE CSA UL					2920 RPM	480 VAC	250 mm	Tubeaxial 3 Phase			Ball	0.743 in H2O	185 Pa		320 mA	230 W	4 Wire Leads with Splice Terminals	Steel	83 mm	IP44
ebm-papst Inc. A2D250-AI02-01	CCC CE EAC					2650 RPM	230 VAC 400 VAC	250 mm	Tubeaxial 3 Phase	1148.6 CFM	32.16 mł/min	Ball	0.602 in H2O	150 Pa	70 dB(A)		140 W	7 Wire Leads with Splice Terminals	Steel	83 mm	IP44	0.4 A	0.23 A	Dual Voltage
ebm-papst Inc. A2D250-AA02-18	CCC CE EAC	-25 °C	40 °C	40 °C	-25 °C	2950 RPM	230 VAC 400 VAC	250 mm	Tubeaxial 3 Phase			Ball	1.204 in H2O	300 Pa			160 W	7 Wire Leads	Steel	83 mm	IP44	0.45 A	0.26 A	Dual Voltage
ebm-papst Inc. A2D250-AA02-47	CE	-25 °C	40 °C	40 °C	-25 °C	2950 RPM	230 VAC 400 VAC	250 mm	Tubeaxial 3 Phase			Ball	1.204 in H2O	299.9 Pa		0.26 A	160 W	7 Wire Leads	Steel	82.5 mm	IP44			Dual Voltage	4.8 lbs	2.2 kg
ebm-papst Inc. A2D250-AA06-71	CE	-25 °C	65 °C	65 °C	-25 °C	2900 RPM		250 mm	Tubeaxial 3 Phase			Ball	0.502 in H2O	125 Pa			150 W	Terminal Block	Steel	83 mm	IP44	0.38 A	0.22 A	Dual Voltage			460 VAC	265 VAC
ebm-papst Inc. A2D250-AA06-52	CSA UL	-25 °C	65 °C	65 °C	-25 °C	2900 RPM		250 mm	Tubeaxial 3 Phase			Ball	0.502 in H2O	125 Pa			150 W	9 Wire Leads with Splice Terminals	Steel	83 mm	IP44	0.38 A	0.22 A	Dual Voltage Thermal Overload Protector (TOP)					460 VAC	266 VAC
ebm-papst Inc. A2D250-AA02-02	CCC CE EAC	-25 °C	40 °C	40 °C	-25 °C	2950 RPM	400 VAC	250 mm	Tubeaxial 3 Phase	1086.7 CFM	30.43 m³/min	Ball	1.204 in H2O	300 Pa	75 dB(A)	0.26 A	160 W	7 Wire Leads with Splice Terminals	Steel	83 mm	IP44

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 272.42
		10	$ 250.91
		25	$ 234.78

Description

General part information

A2D250 Series

Fan Tubeaxial, 3 Phase 400VAC Round - 250mm Dia Ball 1086.7 CFM (30.43m³/min) 7 Wire Leads with Splice Terminals
