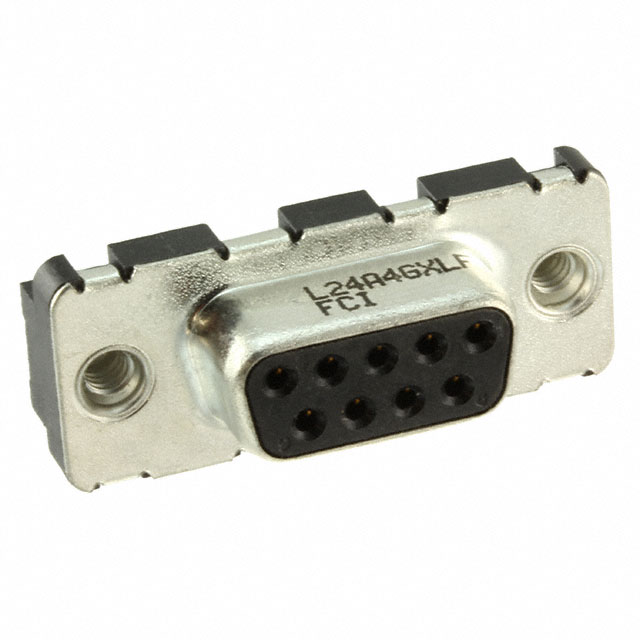

LD09S24A4GX00LF

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 9POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 9POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD09S24A4GX00LF

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

Part	Shell Material, Finish	Contact Finish Thickness	Material Flammability Rating	Connector Style	Number of Positions	Number of Rows	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Current Rating (Amps)	Contact Material	Contact Type	Termination	Color	Contact Finish
Amphenol ICC (FCI) LD09S24A4GX00LF	Steel Tin-Nickel Plated	Flash	UL94 V-0	D-Sub	9	2	Thermoplastic	105 ░C	-55 °C	250 VDC	Through Hole	Receptacle Female Sockets	DE E	1	Housing/Shell (4-40)	5 A	Copper Alloy	Signal	Solder	Black	Gold
