AX01F060VAABR500

Active

JAE Electronics

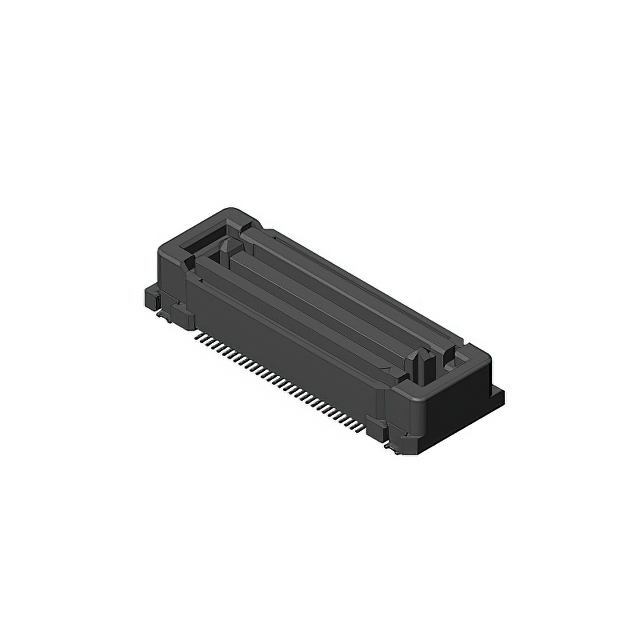

CONN FLOATING SIDE STR 60 POS

Search across all available documentation for this part.

Active

JAE Electronics

CONN FLOATING SIDE STR 60 POS

Technical Specifications

Parameters and characteristics for this part

Specification	AX01F060VAABR500

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board [z]	0.248 "
Height Above Board [z]	6.3 mm
Mated Stacking Heights	8 mm, 18 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Mounting Type	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights
JAE Electronics AX01F060VABBR300	4 Áin	0.1 Ám	Board Guide Solder Retention	60	Gold	0.64 mm	0.025 in	Center Strip Contacts Receptacle	2	Surface Mount
JAE Electronics AX01F060VAABR500	4 Áin	0.1 Ám	Board Guide Solder Retention	60	Gold	0.64 mm	0.025 in	Center Strip Contacts Receptacle	2	Surface Mount	0.248 "	6.3 mm	8 mm 10 mm 18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 4.24

General part information

60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
