WR9QE1000CCPNA-N(R6B

Active

GlobTek, Inc.

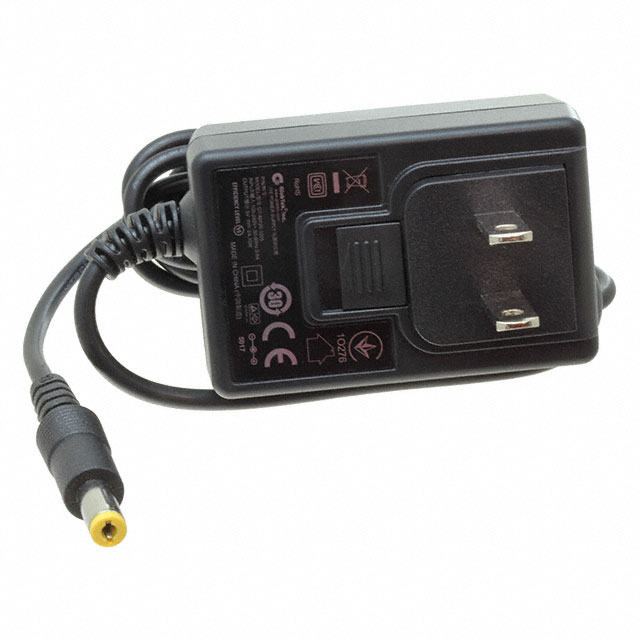

AC/DC WALL MOUNT ADAPTER 12V 12W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 12W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QE1000CCPNA-N(R6B

Applications	ITE (Commercial)
Approval Agency	CE, UKRSepro, CB, PSE, VCCI, EAC, LPS, cULus
Cord Length	48.4 in
Cord Length	1.23 m
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	International
Size / Dimension [x]	64 mm
Size / Dimension [x]	2.52 in
Size / Dimension [y]	1.59 "
Size / Dimension [y]	40.5 mm
Size / Dimension [z]	1.24 "
Size / Dimension [z]	31.5 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Output Connector	Output Connector [diameter]	Output Connector [x]	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Polarization	Input Connector	Standard Number	No Load Power Consumption [Max]	Efficiency	Form	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Power (Watts)	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Applications	Approval Agency	Output Connector [z]
GlobTek, Inc. WR9QE1000LCPNA-N(R6B	Barrel Plug	2.5 mm 5.5 mm	11 mm	International	40 °C	0 °C	12 V	Positive Center	Multi-Blade	60950-1	75 mW	Level VI	Wall Mount (Class II)	90 VAC	264 VAC	48.4 in	1.23 m	12 W	1 A	1.59 "	1.24 "	40.5 mm	64 mm	31.5 mm	2.52 in	Multi-Blade (Sold Separately)	ITE (Commercial)	CB CE cULus EAC LPS PSE UKRSepro VCCI
GlobTek, Inc. WR9QE1000CCPNA-N(R6B	Barrel Plug	2.1 mm 5.5 mm		International	40 °C	0 °C	12 V	Positive Center	Multi-Blade	60950-1	75 mW	Level VI	Wall Mount (Class II)	90 VAC	264 VAC	48.4 in	1.23 m	12 W	1 A	1.59 "	1.24 "	40.5 mm	64 mm	31.5 mm	2.52 in	Multi-Blade (Sold Separately)	ITE (Commercial)	CB CE cULus EAC LPS PSE UKRSepro VCCI	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 12 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
