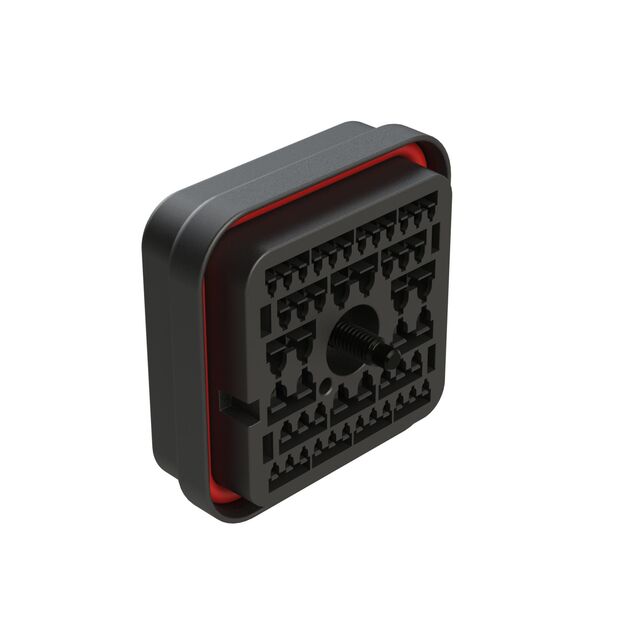

ARB16-48SCR-L018
ActiveAmphenol Sine Systems Corp
48 POSITION PLUG, REDUCED DIAMET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ARB16-48SCR-L018
ActiveAmphenol Sine Systems Corp
48 POSITION PLUG, REDUCED DIAMET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ARB16-48SCR-L018 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | IP68, IP69K, Reduced Wire Seals |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 48 |
| Number of Rows | 12 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.93 | |
| 10 | $ 13.23 | |||
| 25 | $ 12.73 | |||
| 50 | $ 12.22 | |||
| 120 | $ 11.54 | |||
| 360 | $ 10.52 | |||
| 600 | $ 9.84 | |||
| 1080 | $ 9.03 | |||
Description
General part information
ARB16 Series
48 Rectangular Connectors - Housings Plug Black
Documents
Technical documentation and resources
