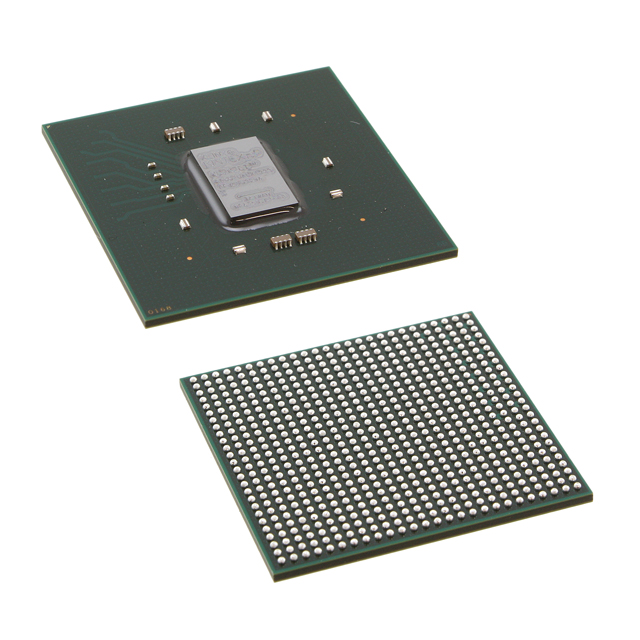

XCAU25P-1FFVB676I

Active

AMD

IC FPGA ARTIXUP 676FBGA

Search across all available documentation for this part.

Active

AMD

IC FPGA ARTIXUP 676FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XCAU25P-1FFVB676I

Mounting Type	Surface Mount
Number of I/O	280
Number of LABs/CLBs	17625
Number of Logic Elements/Cells	308437
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Supplier Device Package	676-FCBGA (27x27)
Total RAM Bits	4928307 Bits
Voltage - Supply [Max]	0.876 V
Voltage - Supply [Min]	0.825 V

Part	Number of LABs/CLBs	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Logic Elements/Cells	Package / Case	Mounting Type	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Total RAM Bits
AMD XCAU25P-L1SFVB784I	17625	0.698 V	0.742 V	308437	784-BFBGA FCBGA	Surface Mount	304	100 °C	-40 C
AMD XCAU25P-2FFVB676I	17625	0.825 V	0.876 V	308437		Surface Mount	280	100 °C	-40 C	676-FCBGA (27x27)
AMD XCAU25P-2SFVB784I	17625	0.825 V	0.876 V	308437	784-BFBGA FCBGA	Surface Mount	304	100 °C	-40 C		4928307 Bits
AMD XCAU25P-2SFVB784E	17625	0.825 V	0.876 V	308437	784-BFBGA FCBGA	Surface Mount	304	100 °C	0 °C
AMD XCAU25P-2FFVB676E	17625	0.825 V	0.876 V	308437		Surface Mount	280	100 °C	0 °C	676-FCBGA (27x27)
AMD XCAU25P-1FFVB676I	17625	0.825 V	0.876 V	308437		Surface Mount	280	100 °C	-40 C	676-FCBGA (27x27)	4928307 Bits

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 534.30

General part information

Artix® UltraScale+ Field Programmable Gate Array (FPGA) IC 280 4928307 308437 676-BBGA, FCBGA

Technical documentation and resources

No documents available
