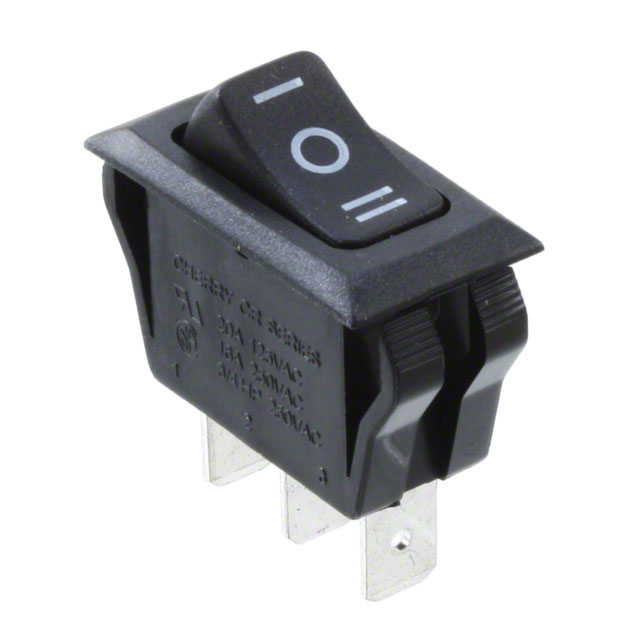

CRE24F2HBBNE
ActiveZF Electronics
SWITCH ROCKER SPDT 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
CRE24F2HBBNE
ActiveZF Electronics
SWITCH ROCKER SPDT 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CRE24F2HBBNE |
|---|---|
| Actuator Marking | I O II |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [y] | 12.1 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.95 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.57 | |||
| 100 | $ 1.50 | |||
| 250 | $ 1.43 | |||
| 500 | $ 1.34 | |||
| 1000 | $ 1.28 | |||
Description
General part information
CRE24F2H Series
Rocker Switch SPDT 20A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
