MDBE09SE760

Active

Amphenol ICC (Commercial Products)

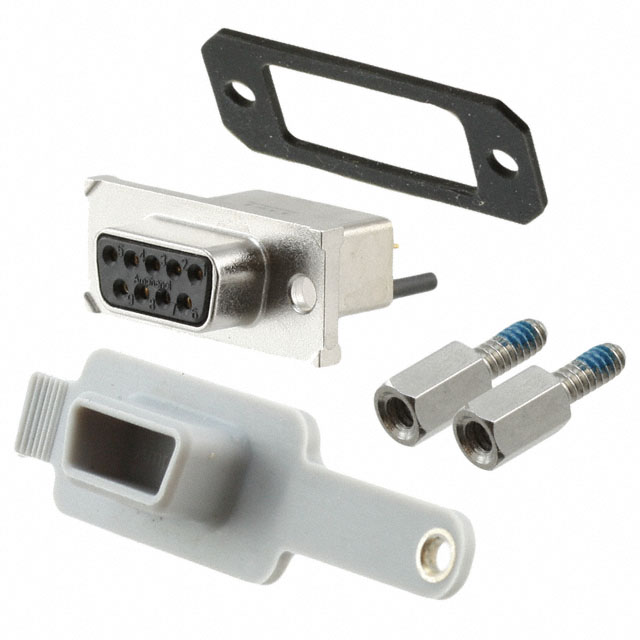

CONN D-SUB RCPT 9P PNL MNT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9P PNL MNT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MDBE09SE760

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Features	Board Guide, Dust Cap
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Zinc
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	125 VDC

Part	Material Flammability Rating	Mounting Type	Shell Material, Finish	Color	Number of Rows	Termination	Connector Type	Dielectric Material	Features	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Connector Style	Flange Feature	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) MDBE09PE760	UL94 V-0	Panel Mount Through Hole	Nickel Plated Zinc	Black	2	Solder	Male Pins Plug	Thermoplastic	Board Guide Dust Cap	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	9	125 VDC	Signal	DE E	1	Copper Alloy	Gold	0.76 Ám	30 Áin	5 A	D-Sub	Housing/Shell (Unthreaded)
Amphenol ICC (Commercial Products) MDB-E09SA-700	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Zinc	Black	2	Solder	Receptacle Female Sockets	Thermoplastic		IP67 - Dust Tight Waterproof	-40 °C	105 ░C	9	125 VDC	Signal	DE E	1	Copper Alloy	Gold	0.76 Ám	30 Áin	5 A	D-Sub	Female Screwlock (4-40) Mating Side	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) MDBE09SE760	UL94 V-0	Panel Mount Through Hole	Nickel Plated Zinc	Black	2	Solder	Receptacle Female Sockets	Thermoplastic	Board Guide Dust Cap	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	9	125 VDC	Signal	DE E	1	Copper Alloy	Gold	1.27 µm	50 µin	5 A	D-Sub	Housing/Shell (Unthreaded)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
