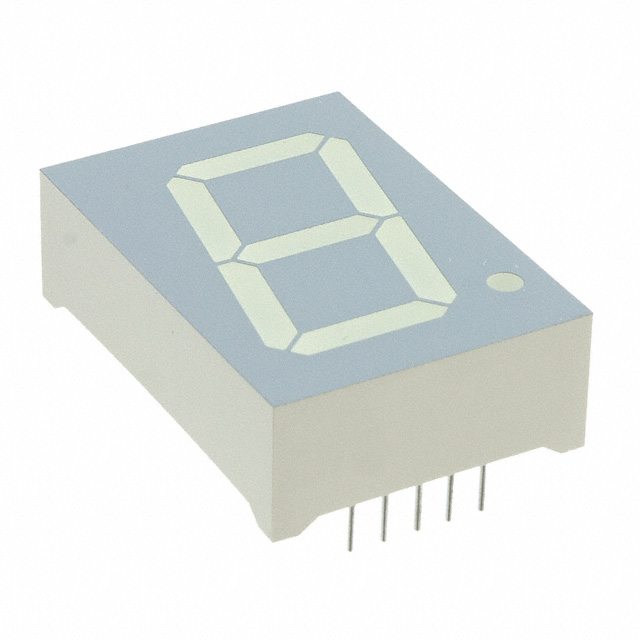

SC10-21SRWA

Obsolete

Kingbright

DISPLAY 7-SEG 1" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC10-21SRWA

Obsolete

Kingbright

DISPLAY 7-SEG 1" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC10-21SRWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	1 in
Digit/Alpha Size	25.4 mm
Display Type	7-Segment
Millicandela Rating	120 mcd
Number of Characters [custom]	1
Package / Case	30.48 mm
Package / Case	1.2 in
Package / Case	10-DIP
Power Dissipation (Max) [Max]	150 mW
Size / Dimension [x]	1.339 "
Size / Dimension [x]	34 mm
Size / Dimension [y]	24 mm
Size / Dimension [y]	0.945 in
Size / Dimension [z]	10.5 mm
Size / Dimension [z]	0.413 "
Voltage - Forward (Vf) (Typ)	3.7 V
Wavelength - Peak	660 nm

SC10-21 Series

Part	Wavelength - Peak	Display Type	Color	Package / Case [y]	Package / Case	Package / Case [x]	Number of Characters [custom]	Millicandela Rating	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Test	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Kingbright SC10-21SYKWA	590 nm	7-Segment	Yellow	30.4 mm	10-DIP	1.197 in	1	400 mcd	0.413 in	1.339 "	34 mm	0.551 in	14 mm	10.5 mm	20 mA	2 V	75 mw	1 in	25.4 mm	Common Cathode
Kingbright SC10-21GWA	565 nm	7-Segment	Green		10-DIP		1	37 mcd	10.5 mm	34 mm		24 mm			20 mA	4.4 V	125 mW	1 in	25.4 mm	Common Cathode	30.48 mm	1.2 in	1.339 "	0.413 "	0.945 in
Kingbright SC10-21CGKWA		7-Segment	Green	30.4 mm	10-DIP	1.197 in	1	95 mcd	0.413 in	1.339 "	34 mm	0.551 in	14 mm	10.5 mm	20 mA	4.2 V	150 mW	1 in	25.4 mm	Common Cathode
Kingbright SC10-21EWA	627 nm	7-Segment	Red		10-DIP		1	23 mcd	10.5 mm	34 mm		24 mm			20 mA	4 V	150 mW	1 in	25.4 mm	Common Cathode	30.48 mm	1.2 in	1.339 "	0.413 "	0.945 in
Kingbright SC10-21SRWA	660 nm	7-Segment	Red		10-DIP		1	120 mcd	10.5 mm	34 mm		24 mm			20 mA	3.7 V	150 mW	1 in	25.4 mm	Common Cathode	30.48 mm	1.2 in	1.339 "	0.413 "	0.945 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SC10-21 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 3.7V 20mA 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) 10-DIP (1.200", 30.48mm)

Documents

Technical documentation and resources
