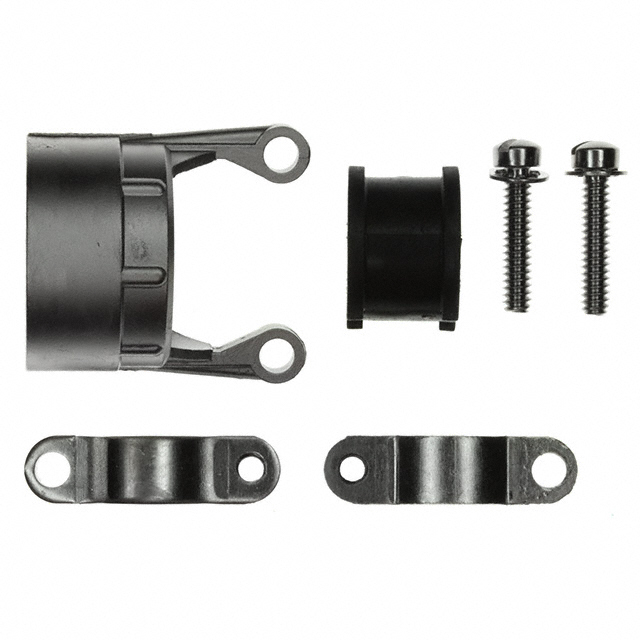

UT016AC

Active

Souriau-Sunbank by Eaton

CONN BCKSH W/CLMP SZ16 15/16-20

Deep-Dive with AI

Search across all available documentation for this part.

UT016AC

Active

Souriau-Sunbank by Eaton

CONN BCKSH W/CLMP SZ16 15/16-20

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT016AC

Cable Exit	180 °
Cable Opening [custom]	0.512 in
Cable Opening [custom]	13 mm
Color	Silver
Diameter - Outside [diameter]	1.02 in
Diameter - Outside [diameter]	25.91 mm
Features	Clamp Screws
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Material	Metal
Material Flammability Rating	UL94 V-0
Shell Size - Insert	16
Shielding	Unshielded
Thread Size	15/16-20 UNEF
Type	Backshell, Cable Clamp

UT016 Series

Part	Accessory Type	Color	Material	Shell Size - Insert	Features	For Use With/Related Products	Shielding	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Material Flammability Rating	Type	Cable Exit	Thread Size	Ingress Protection	Cable Opening [Max] [custom]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [custom]	Cable Opening [custom]	Includes	Plating
Souriau-Sunbank by Eaton UT016DCG	Cap (Cover) Dust	Silver	Metal	16	Dust Tight Metal Chain Waterproof	Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles
Souriau-Sunbank by Eaton UT016LPGN		Silver	Brass	16	Clamp Screws Strain Relief	Trim Trio® UTO and UTOW Connectors	Unshielded	0.315 in	8 mm	0.807 in	20.5 mm	UL94 V-0	Backshell Cable Clamp	90 °	PG16
Souriau-Sunbank by Eaton UT016JCS		Silver	Brass	16	Sealing Gland Strain Relief	Trim Trio® UTO and UTOW Connectors	Unshielded	0.374 in	9.5 mm	0.551 in		UL94 V-0	Backshell Cable Clamp	180 °	PG16	IP68 IP69K	14 mm
Souriau-Sunbank by Eaton UT016JCSL		Silver	Brass	16	Sealing Gland Strain Relief	Trim Trio® UTO and UTOW Connectors	Unshielded					UL94 V-0	Backshell Cable Clamp	180 °	PG16	IP68 IP69K
Souriau-Sunbank by Eaton UT016AC		Silver	Metal	16	Clamp Screws	Trim Trio® UTO and UTOW Connectors	Unshielded					UL94 V-0	Backshell Cable Clamp	180 °	15/16-20 UNEF			1.02 in	25.91 mm	0.512 in	13 mm
Souriau-Sunbank by Eaton UT016JCPGN		Silver	Aluminum Alloy	16	Clamp Screws Strain Relief	Trim Trio® UTO and UTOW Connectors	Unshielded					UL94 V-0	Backshell Cable Clamp	180 °	PG16	IP65 - Dust Tight Water Resistant				0.65 in	16.5 mm	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers	Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.76
		10	$ 26.93
		25	$ 25.77
		50	$ 24.94
		100	$ 24.11
		250	$ 22.78

Description

General part information

UT016 Series

Silver Connector Backshell, Cable Clamp 15/16-20 UNEF 16

Documents

Technical documentation and resources

No documents available
