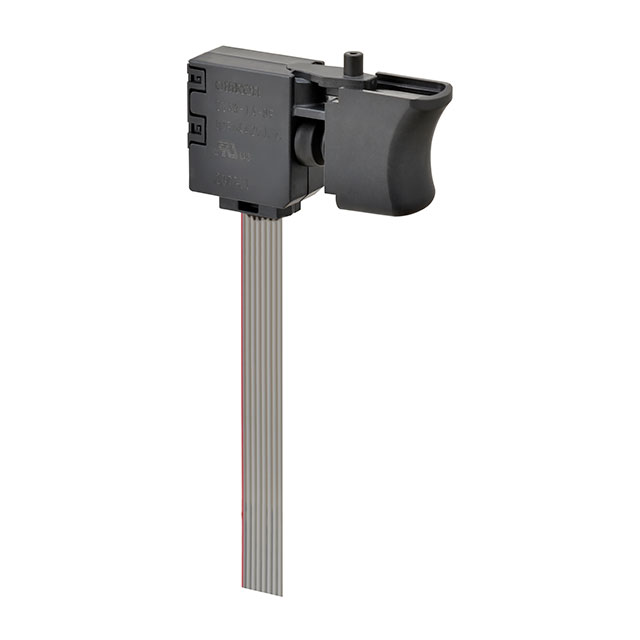

C3AW-1A-8F
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION 0.01A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C3AW-1A-8F
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION 0.01A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C3AW-1A-8F |
|---|---|
| Actuator Type | Trigger |
| Current Rating (Amps) | 10 mA |
| Electrical Life | 200000 Cycles |
| Ingress Protection | IP60 |
| Mechanical Life | 300000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 2039 gf |
| Release Force | 102 gf |
| Termination Style | Cable Leads |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.93 | |
| 10 | $ 8.95 | |||
| 25 | $ 8.57 | |||
| 50 | $ 8.15 | |||
| 100 | $ 7.82 | |||
| 250 | $ 7.36 | |||
| 450 | $ 6.79 | |||
| 950 | $ 6.56 | |||
Description
General part information
C3AW Series
Switch Chassis Mount
