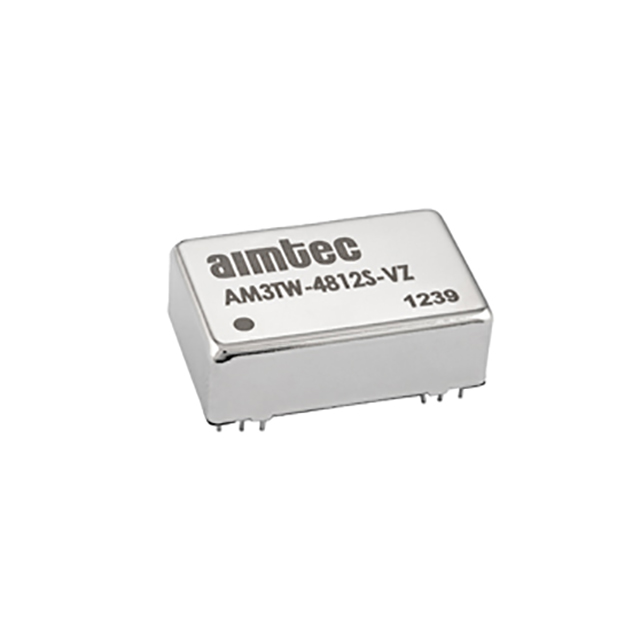

AM3TW-2412SH35-VZ

Active

aimtec

DC DC CONVERTER 12V 3W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 12V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Efficiency	Mounting Type	Voltage - Isolation	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Applications	Voltage - Output 2	Power (Watts)	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Supplier Device Package
aimtec AM3TW-2415DZ	24-DIP Module	12 Leads	80 %	Through Hole	1.5 kV	Isolated Module	85 °C	-40 °C	36 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	100 mA	100 mA	15 V	ITE (Commercial)	-15 V	3 W	2	9 V
aimtec AM3TW-4805S-NZ	24-DIP Module		79 %	Through Hole	1.5 kV	Isolated Module	85 °C	-40 °C	75 V	10.16 mm	31.8 mm	10.2 mm		20.3 mm				5 V	ITE (Commercial)		3 W	1	18 V	600 mA	20.32 mm	1.25 "
aimtec AM3TW-2412SH35-VZ	24-DIP Module 15 Leads		73 %	Through Hole	1.5 kV	Isolated Module	85 °C	-40 °C	36 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm			12 V	ITE (Commercial)		3 W	1	9 V	250 mA			24-DIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 250mA 9V - 36V Input
