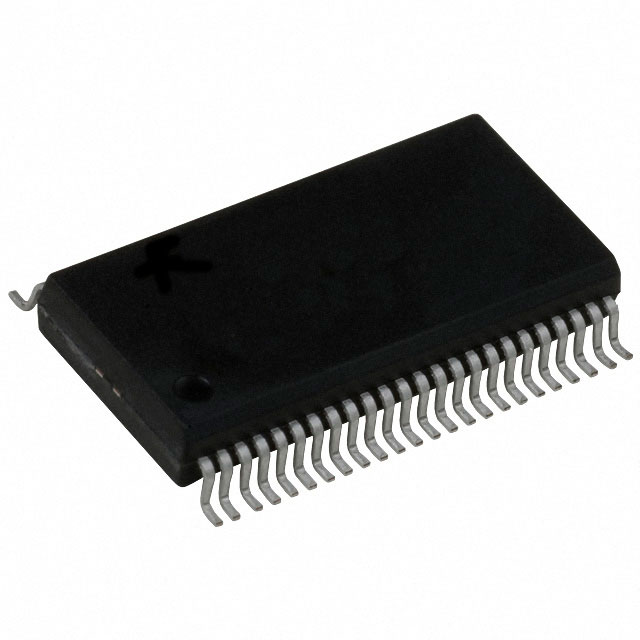

74AC16244DGGRG4
UnknownTexas Instruments
IC BUFF NON-INVERT 5.5V 48TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
74AC16244DGGRG4
UnknownTexas Instruments
IC BUFF NON-INVERT 5.5V 48TSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74AC16244DGGRG4 |
|---|---|
| Current - Output High, Low | 24 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 |
| Number of Elements | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |
| Package / Case | 48-TFSOP |
| Package / Case | 0.24 in |
| Package / Case [custom] | 6.1 mm |
| Supplier Device Package | 48-TSSOP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.96 | |
| 6000 | $ 0.93 | |||
| 10000 | $ 0.89 | |||
Description
General part information
74AC16244 Series
Buffer, Non-Inverting 4 Element 4 Bit per Element 3-State Output 48-TSSOP
Documents
Technical documentation and resources
No documents available
