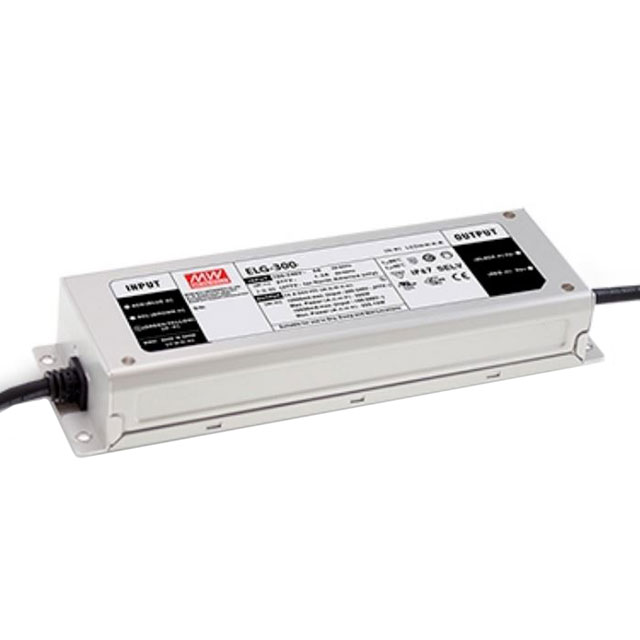

ELG-300-24A
ActiveMEAN WELL USA Inc.
O/P +24V/12500MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELG-300-24A
ActiveMEAN WELL USA Inc.
O/P +24V/12500MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELG-300-24A |
|---|---|
| Approval Agency | KC, CE, CCC, EAC, ENEC, cURus, CB |
| Current - Output (Max) [Max] | 12.5 A |
| Efficiency | 94 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 300 W |
| Ratings | IP67 |
| Size / Dimension [x] | 8.74 " |
| Size / Dimension [x] | 222 mm |
| Size / Dimension [y] | 3.03 in |
| Size / Dimension [y] | 77 mm |
| Size / Dimension [z] | 39.5 mm |
| Size / Dimension [z] | 1.56 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 80.88 | |
| 5 | $ 76.00 | |||
| 10 | $ 72.70 | |||
| 25 | $ 70.60 | |||
Description
General part information
ELG-300 Series
12.5A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
