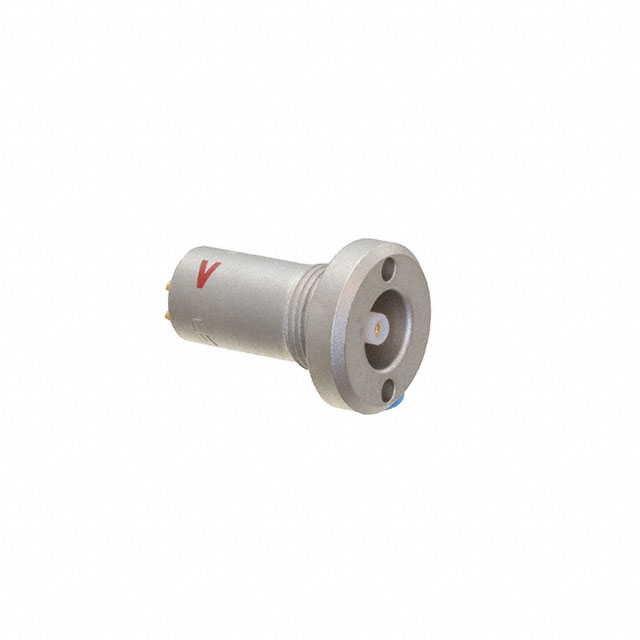

EWV.00.250.NTLPV

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	EWV.00.250.NTLPV

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Features	Vacuumtight
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mating Cycles	5000
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Shield Termination	Solder
Voltage Rating	700 VDC

Part	Features	Contact Termination	Connector Type	Mounting Feature	Dielectric Material	Center Contact Plating	Ingress Protection	Number of Ports	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Body Finish	Center Contact Material	Connector Style	Fastening Type	Shield Termination	Body Material	Housing Color	Voltage Rating
LEMO EWV.00.250.NTLPV	Vacuumtight	Solder Cup	Female Socket Receptacle	Bulkhead - Rear Side Nut	Polytetrafluoroethylene (PTFE)	Gold	IP68 - Dust Tight Waterproof	1	5000	100 °C	-20 C	50 Ohms	Nickel	Bronze	NIM-CAMAC CD/N 549	Push-Pull	Solder	Brass	Silver	700 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
