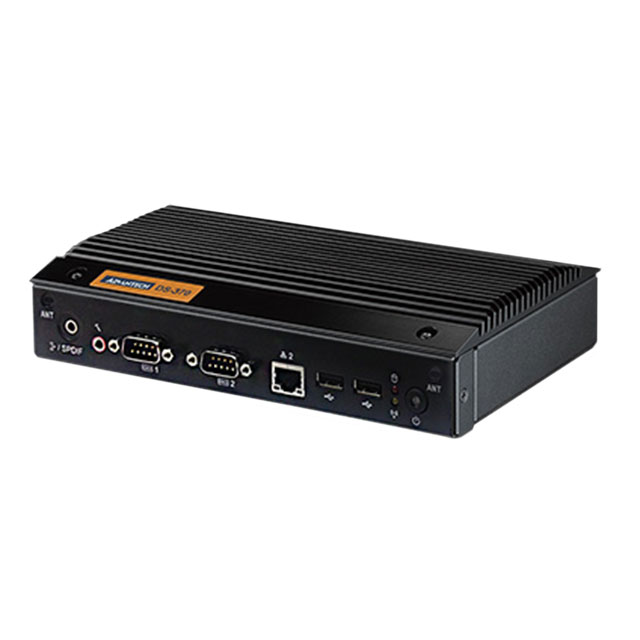

DS-370GQ-U0A1E

Active

Advantech Corp

SBC 2.0GHZ 4 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 2.0GHZ 4 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	DS-370GQ-U0A1E

Cooling Type	Heat Sink
Core Processor	Intel Celeron J1900
Ethernet	GbE
Expansion Site/Bus	mPCIe
Number of Cores	4
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	10.85 W
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	2
Size / Dimension [x]	8.03 "
Size / Dimension [x]	203.96 mm
Size / Dimension [y]	118.11 mm
Size / Dimension [y]	4.65 in
Speed	2 GHz
Storage Interface	SATA HDD, mSATA, SSD
USB	USB 2.0 (3), USB 3.0 (1)
Video Outputs	VGA, DP, HDMI
Watchdog Timer	True

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Expansion Site/Bus	Cooling Type	Video Outputs	Core Processor	RAM Capacity/Installed [custom]	Speed	Power (Watts)	RS-232 (422, 485)	Operating Temperature [Max]	Storage Interface	Ethernet	USB	Number of Cores
Advantech Corp DS-370GF-U0A1E	8.03 "	203.96 mm	118.11 mm	4.65 in	mPCIe	Heat Sink	DP HDMI VGA	Intel Celeron J1900	8 GB	2 GHz	10.85 W	2	40 °C	mSATA SATA HDD SSD	GbE	USB 2.0 (3) USB 3.0 (1)	4
Advantech Corp DS-370GB-U0A1E	8.03 "	203.96 mm	118.11 mm	4.65 in	mPCIe	Heat Sink	DP HDMI VGA	Intel Celeron J1900	8 GB	2 GHz	10.85 W	2	40 °C	mSATA SATA HDD SSD	GbE	USB 2.0 (3) USB 3.0 (1)	4
Advantech Corp DS-370GQ-U0A1E	8.03 "	203.96 mm	118.11 mm	4.65 in	mPCIe	Heat Sink	DP HDMI VGA	Intel Celeron J1900	8 GB	2 GHz	10.85 W	2	40 °C	mSATA SATA HDD SSD	GbE	USB 2.0 (3) USB 3.0 (1)	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 891.94

General part information

Single Board Computer 2.0GHz 4 Core 8GB/0GB RAM Intel Celeron J1900
