B06B-PNISK-1A

Active

JST Sales America Inc.

CONN HEADER VERT 6POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 6POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B06B-PNISK-1A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.402 in
Insulation Height	10.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	100 V

Part	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Type	Fastening Type	Shrouding	Number of Rows	Mounting Type	Material Flammability Rating	Style	Contact Material	Number of Positions	Features	Mated Stacking Heights	Number of Positions Loaded	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Termination	Insulation Height	Insulation Height	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material
JST Sales America Inc. B06B-PNISK-1A	Header	3 A	-25 °C	85 °C	Square	Male Pin	Latch Lock	Shrouded - 4 Wall	1	Through Hole	UL94 V-0	Board to Cable/Wire	Copper Alloy	6	Board Guide	12.25 mm	All	Natural	0.079 in	2 mm	100 V	Press-Fit Solder	0.402 in	10.2 mm	Tin	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6 Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

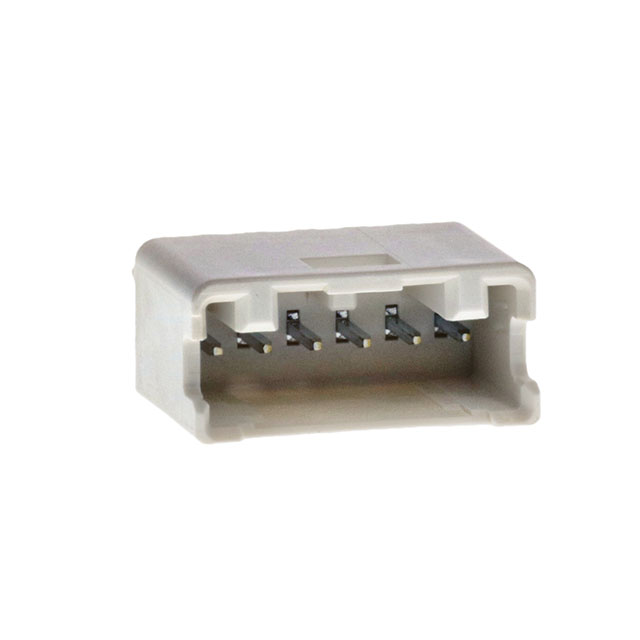

Connector Header Through Hole 6 position 0.079" (2.00mm)
