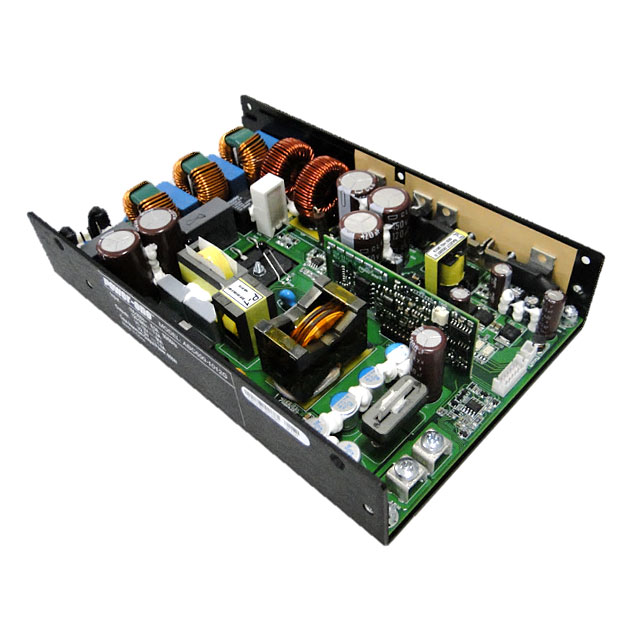

ABC600-1048G

Active

EOS Power India Private Ltd

AC/DC CONVERTER 48V 420W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 48V 420W

Technical Specifications

Parameters and characteristics for this part

Specification	ABC600-1048G

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	12.5 A
Efficiency	94 %
Features	PMBus™ Interface, PFC, Standby Output, Universal Input, Remote On/Off, Adjustable Output, Remote Sense, Load Sharing
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	420 W
Power (Watts)	600 W
Size / Dimension [x]	8 "
Size / Dimension [y]	5 "
Size / Dimension [z]	40.6 mm, 1.6 "
Type	Open Frame
Voltage - Input [Max]	277 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	48 V

Part	Mounting Type	Features	Type	Power (Watts)	Power (Watts)	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Efficiency	Applications	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Number of Outputs
EOS Power India Private Ltd ABC600-1024G	Chassis Mount	Adjustable Output Load Sharing PFC PMBus™ Interface Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	420 W	600 W	24 V	-25 °C	70 °C	CE	94 %	ITE (Commercial)	25 A	8 "	5 "	1.6 " 40.6 mm	277 VAC	90 VAC	4.242 kV	1
EOS Power India Private Ltd ABC600-1028G	Chassis Mount	Adjustable Output Load Sharing PFC PMBus™ Interface Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	420 W	600 W	28 V	-25 °C	70 °C	CE	94 %	ITE (Commercial)	15 A	8 "	5 "	1.6 " 40.6 mm	277 VAC	90 VAC	4.242 kV	1
EOS Power India Private Ltd ABC600-1012G	Chassis Mount	Adjustable Output Load Sharing PFC PMBus™ Interface Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	420 W	600 W	12 V	-25 °C	70 °C	CE	94 %	ITE (Commercial)	50 A	8 "	5 "	1.6 " 40.6 mm	277 VAC	90 VAC	4.242 kV	1
EOS Power India Private Ltd ABC600-1048G	Chassis Mount	Adjustable Output Load Sharing PFC PMBus™ Interface Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	420 W	600 W	48 V	-25 °C	70 °C	CE	94 %	ITE (Commercial)	12.5 A	8 "	5 "	1.6 " 40.6 mm	277 VAC	90 VAC	4.242 kV	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	18	$ 259.03

General part information

Open Frame AC DC Converters 1 Output 48V 90 ~ 277 VAC Input
