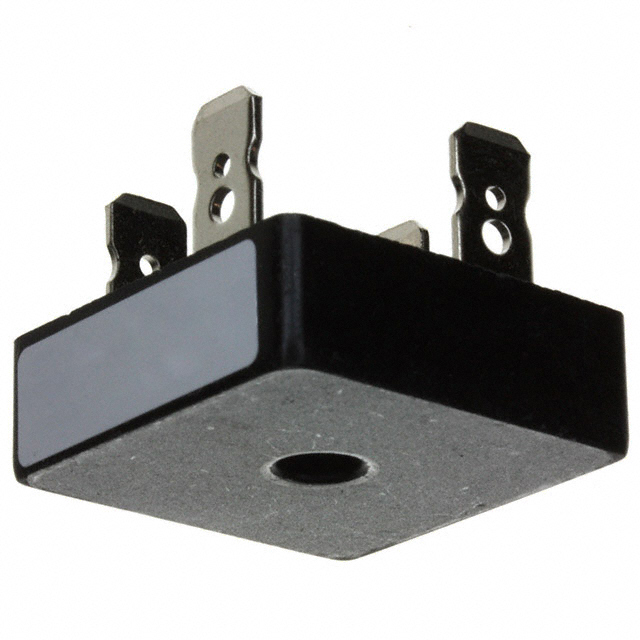

VS-26MB20A
ActiveVishay General Semiconductor - Diodes Division
BRIDGE RECT 1PHASE 200V 25A D-34
Deep-Dive with AI
Search across all available documentation for this part.
VS-26MB20A
ActiveVishay General Semiconductor - Diodes Division
BRIDGE RECT 1PHASE 200V 25A D-34
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-26MB20A |
|---|---|
| Current - Average Rectified (Io) | 25 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Diode Type | Single Phase |
| Mounting Type | QC Terminal |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-Square, D-34 |
| Supplier Device Package | D-34 |
| Technology | Standard |
| Voltage - Peak Reverse (Max) [Max] | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.22 | |
| 20 | $ 7.04 | |||
| 100 | $ 5.87 | |||
| 500 | $ 5.18 | |||
| 1000 | $ 4.66 | |||
| 2000 | $ 4.37 | |||
Description
General part information
26MB20 Series
Bridge Rectifier Single Phase Standard 200 V QC Terminal D-34
