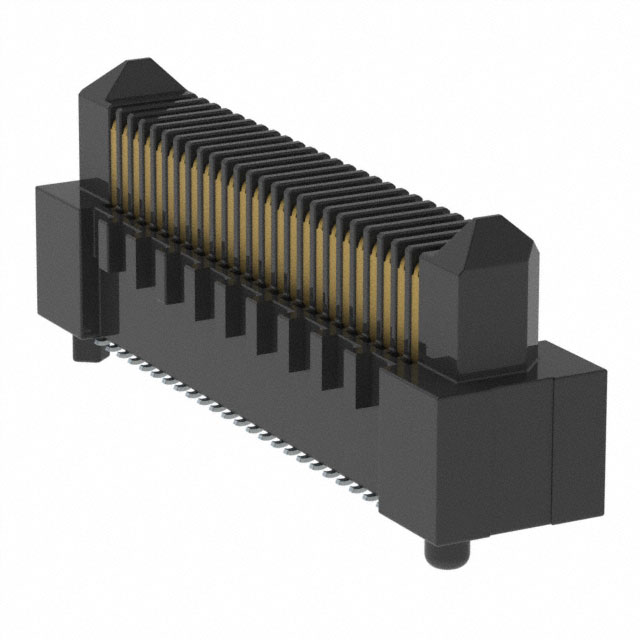

ER8-50P-0.8SV-5H
ActiveHirose Electric USA, Inc.
CONN HDR 50POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ER8-50P-0.8SV-5H
ActiveHirose Electric USA, Inc.
CONN HDR 50POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ER8-50P-0.8SV-5H |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board | 8.91 mm |
| Height Above Board | 0.351 in |
| Mated Stacking Heights | 10 mm, 12 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.23 | |
| 10 | $ 4.75 | |||
| 25 | $ 4.50 | |||
| 50 | $ 4.39 | |||
| 100 | $ 4.18 | |||
| Digi-Reel® | 1 | $ 5.23 | ||
| 10 | $ 4.75 | |||
| 25 | $ 4.50 | |||
| 50 | $ 4.39 | |||
| 100 | $ 4.18 | |||
| Tape & Reel (TR) | 250 | $ 3.25 | ||
| 500 | $ 3.03 | |||
| 750 | $ 2.91 | |||
| 1250 | $ 2.77 | |||
| 1750 | $ 2.68 | |||
| 2500 | $ 2.59 | |||
Description
General part information
ER8-50P Series
50 Position Connector Header, Center Strip Contacts Surface Mount Gold
