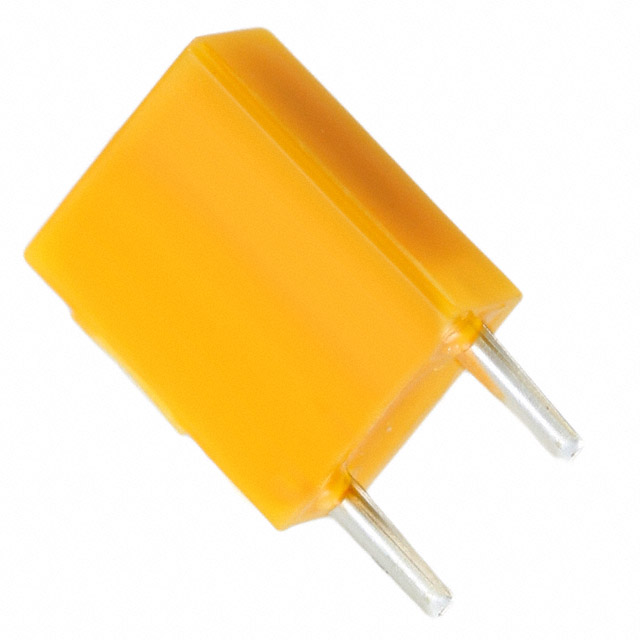

CSBLA480KEC8-B0

Obsolete

Murata Power Solutions Inc.

CERAMIC RES 480.0000KHZ T/H

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CERAMIC RES 480.0000KHZ T/H

Technical Specifications

Parameters and characteristics for this part

Part	Frequency Tolerance	Mounting Type	Type	Impedance	Height [z]	Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Package / Case	Frequency Tolerance	Package / Case [custom]	Package / Case
Murata Power Solutions Inc. CSBLA1M00J58-B0	0.5 %	Through Hole	Ceramic	100 Ohms	6 mm	0.236 "	-20 C	80 C	100 pF	1 MHz	2.2 mm	0.197 in	5 mm	0.087 in	0.3 %	Radial Box - 2 Lead 2.50mm Pitch
Murata Power Solutions Inc. CSBLA480KEC8-B0		Through Hole	Ceramic	30 Ohms	9 mm	0.354 in	-20 C	80 C		480 kHz	3.5 mm	0.276 "	7 mm	0.138 in	0.3 %	Radial Box	±2kHz	5 mm	2 Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

480 kHz Ceramic Resonator ±0.3% 30 Ohms -20°C ~ 80°C Through Hole
