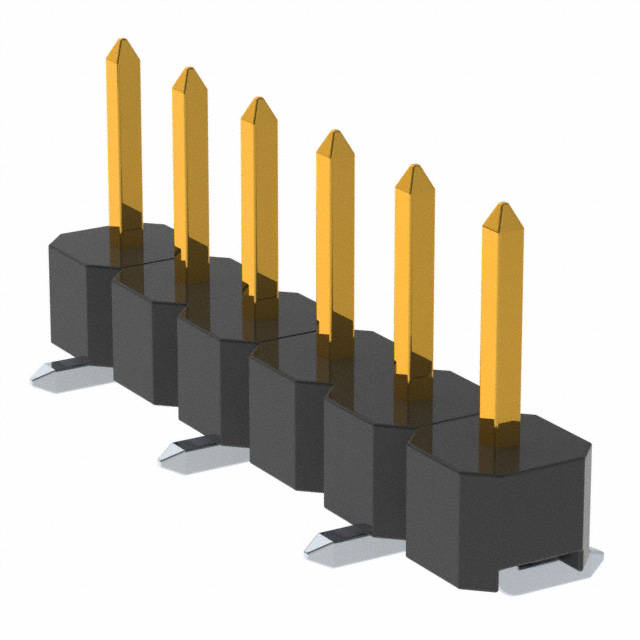

PM20206VBNN

Active

METZ CONNECT USA Inc.

CONN HEADER SMD 6POS 2.54MM

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CONN HEADER SMD 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	PM20206VBNN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Number of Rows	Mounting Type	Number of Positions	Termination	Insulation Color	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Contact Type	Insulation Material
METZ CONNECT USA Inc. PM20206VBDN	Gold	Flash	-40 °C	105 ░C	Unshrouded	3 A	6 mm	0.236 in	All	2	Surface Mount	6	Solder	Black	Push-Pull	2.54 mm	0.1 in	0.098 in	2.5 mm	Header	Square	0.1 in	2.54 mm	Copper Zinc	Male Pin	Polyethylene
METZ CONNECT USA Inc. PM20206VBNN	Gold	Flash	-40 °C	105 ░C	Unshrouded	3 A	6 mm	0.236 in	All	1	Surface Mount	6	Solder	Black	Push-Pull			0.098 in	2.5 mm	Header	Square	0.1 in	2.54 mm	Copper Zinc	Male Pin	Polyethylene

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 6 position 0.100" (2.54mm)
