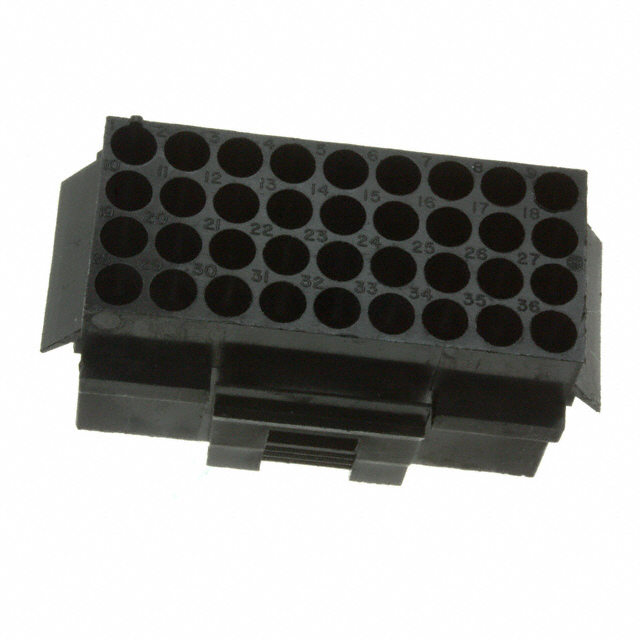

SMS36R-1
UnknownSouriau-Sunbank by Eaton
CONN RCPT HSG 36POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
SMS36R-1
UnknownSouriau-Sunbank by Eaton
CONN RCPT HSG 36POS 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS36R-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 36 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Row Spacing | 5.08 mm |
| Row Spacing | 0.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.95 | |
| 10 | $ 4.49 | |||
| 25 | $ 4.26 | |||
| 50 | $ 4.16 | |||
| 100 | $ 3.96 | |||
| 250 | $ 3.46 | |||
| 500 | $ 3.37 | |||
| 1000 | $ 2.87 | |||
| 2500 | $ 2.67 | |||
Description
General part information
SMS36 Series
36 Rectangular Connectors - Housings Receptacle Black 0.200" (5.08mm)
Documents
Technical documentation and resources
No documents available
