033W,GY

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	033W,GY

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Gray
Container Type	Box
Design	Cover Included, Hand Held
Features	PCB Supports, Wall Mount
Height [z]	48.26 mm
Height [z]	1.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	99.79 g
Weight	0.22 lb

Part	Height [z]	Height [z]	Material Flammability Rating	Design	Container Type	Material	Weight	Weight	Color	Thickness	Thickness	Ratings	Features	Area (L x W)	Area (L x W)
Serpac 033W,AL	48.26 mm	1.9 in	UL94 HB	Cover Included Hand Held	Box	Plastic ABS	99.79 g	0.22 lb	Almond	2.54 mm	0.1 in	IP40 NEMA 1	PCB Supports Wall Mount	92 cm˛	14.2 in²
Serpac 033WI,BK	48.26 mm	1.9 in	UL94 HB	Cover Included Hand Held	Box	Plastic ABS	99.79 g	0.22 lb	Black	2.54 mm	0.1 in	IP40 NEMA 1	PCB Supports Wall Mount	92 cm˛	14.2 in²
Serpac 033WI,GY	48.26 mm	1.9 in	UL94 HB	Cover Included Hand Held	Box	Plastic ABS	99.79 g	0.22 lb	Gray	2.54 mm	0.1 in	IP40 NEMA 1	PCB Supports Wall Mount	92 cm˛	14.2 in²
Serpac 033W,GY	48.26 mm	1.9 in	UL94 HB	Cover Included Hand Held	Box	Plastic ABS	99.79 g	0.22 lb	Gray	2.54 mm	0.1 in	IP40 NEMA 1	PCB Supports Wall Mount	92 cm˛	14.2 in²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.27

General part information

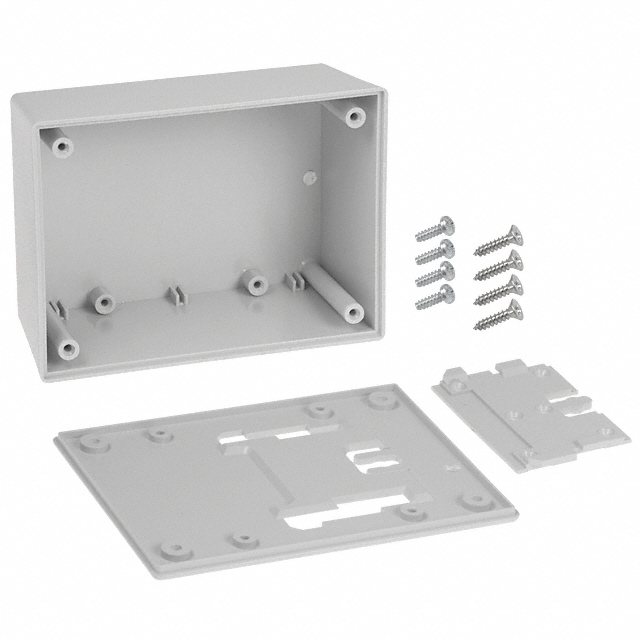

Box Plastic, ABS Gray Hand Held, Cover Included 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.900" (48.26mm)

Technical documentation and resources

No documents available
