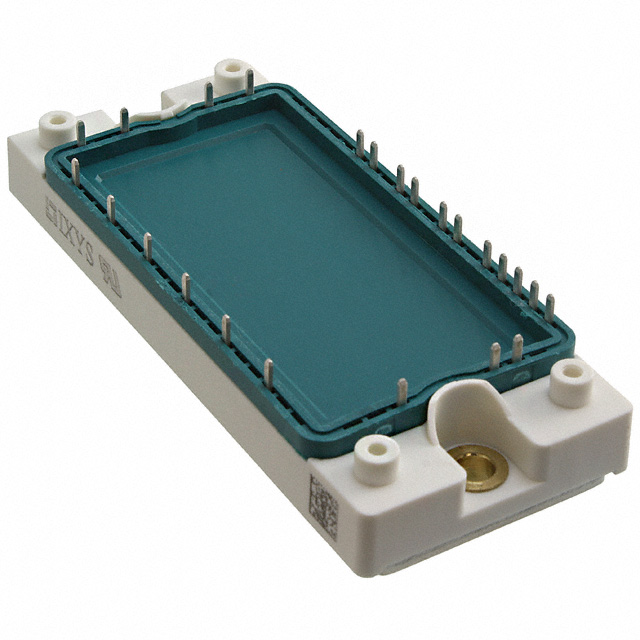

VUB145-16NOXT

Active

IXYS

BRIDGE RECT 3P 1.6KV 150A E2

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 3P 1.6KV 150A E2

Technical Specifications

Parameters and characteristics for this part

Specification	VUB145-16NOXT

Current - Average Rectified (Io)	150 A
Current - Reverse Leakage @ Vr	100 µA
Diode Type	Three Phase (Braking)
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	E2
Supplier Device Package	E2
Technology	Standard
Voltage - Peak Reverse (Max)	1.6 kV

Part	Current - Reverse Leakage @ Vr	Package / Case	Technology	Diode Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)	Supplier Device Package
IXYS VUB145-16NO1	100 µA	E2	Standard	Three Phase (Braking)	Chassis Mount	-40 °C	125 ¯C	1.6 kV	145 A	E2
IXYS VUB145-16NOXT	100 µA	E2	Standard	Three Phase (Braking)	Chassis Mount	-40 °C	150 °C	1.6 kV	150 A	E2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase (Braking) Standard 1.6 kV Chassis Mount E2
