C0952A.41.10

Active

Prysmian Group

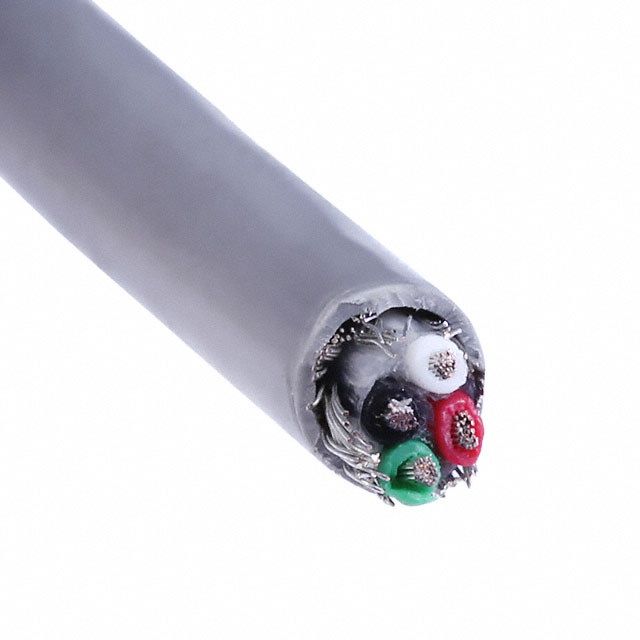

CABLE 4COND 24AWG GRAY SHLD 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 24AWG GRAY SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C0952A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.197 in
Jacket (Insulation) Diameter [diameter]	5 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %, 65 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length [x]	Length [x]	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Shield Coverage	Usage	Conductor Insulation	Shield Material	Shield Type	Jacket (Insulation) Material	Jacket Color	Length	Length	Wire Gauge
Prysmian Group C0952A.41.10	Copper Annealed Tinned	32 AWG	7	4	30.5 m	100 ft	300 V	-20 C	80 C	Multi-Conductor	0.197 in	5 mm	ASTM B-33	65 % 100 %	Computer	Poly-Vinyl Chloride (PVC)	Copper Flexfoil® Tinned	Braid Foil	Poly-Vinyl Chloride (PVC)	Gray	1000 ft	304.8 m	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 24 AWG Foil, Braid 100.0' (30.5m)
