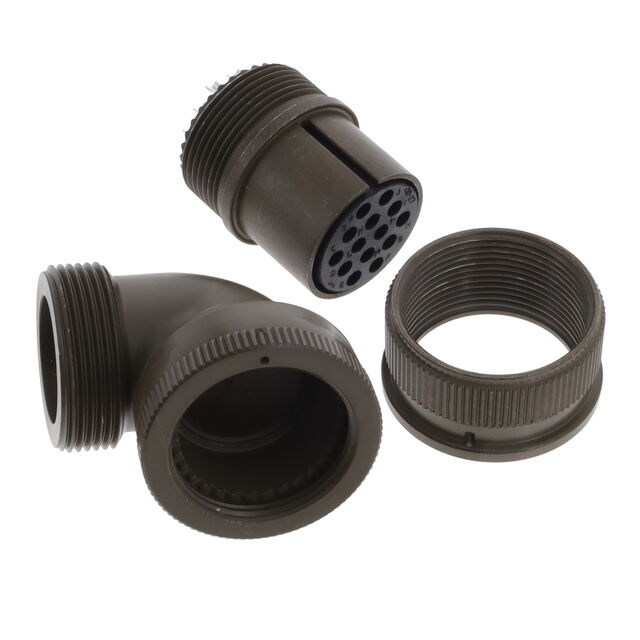

MS3108A20-27S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3108A20-27S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108A20-27S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	27
Shell Size - Insert [Min]	20
Shielding	Unshielded

MS3108A20 Series

Part	Contact Material	Color	Contact Finish - Mating	Qualification	Applications	Insert Material	Mounting Type	Shell Finish	Shell Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shielding	Primary Material	Connector Type	Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Ingress Protection	Grade	Number of Positions	Shell Size - Insert	Current Rating (Amps)
Amphenol Industrial Operations MS3108A20-12P
Amphenol Industrial Operations MS3108A20-29SW	Copper Alloy	Olive Drab	Silver	MIL-5015	Marine Military	Neoprene	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	Aluminum Alloy	29	20	Unshielded	Metal	Female Sockets Plug	W	Coupling Nut	-55 °C	125 °C
Amphenol Industrial Operations MS3108A20-4P	Copper Alloy	Olive Drab	Silver	MIL-DTL-5015	Marine Military	Neoprene	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	Aluminum Alloy			Unshielded	Metal	Male Pins Plug	N		-55 °C	125 °C	900 VAC 1250 VDC	Environment Resistant	Military	4	20-4	23 A
Amphenol Industrial Operations MS3108A20-4S	Copper Alloy	Olive Drab	Silver	MIL-DTL-5015	Marine Military	Neoprene	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	Aluminum Alloy			Unshielded	Metal	Female Sockets Plug	N		-55 °C	125 °C	900 VAC 1250 VDC	Environment Resistant	Military	4	20-4	23 A
Amphenol Industrial Operations MS3108A20-27S	Copper Alloy	Olive Drab	Silver	MIL-DTL-5015	Marine Military	Neoprene	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	Aluminum Alloy	27	20	Unshielded	Metal	Female Sockets Plug	N		-55 °C	125 °C		Environment Resistant	Military	14		13 A
Amphenol Industrial Operations MS3108A20-29P	Copper Alloy	Olive Drab	Silver	MIL-DTL-5015	Marine Military	Neoprene	Free Hanging (In-Line) Right Angle	Olive Drab Chromate over Cadmium	Aluminum Alloy	29	20	Unshielded	Metal	Male Pins Plug	N	Coupling Nut	-55 °C	125 °C		Environment Resistant	Military			13 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 76.10
		10	$ 69.83
		25	$ 67.14
		50	$ 64.91
		100	$ 61.33

Description

General part information

MS3108A20 Series

14 Position Circular Connector Plug, Female Sockets Solder Cup
