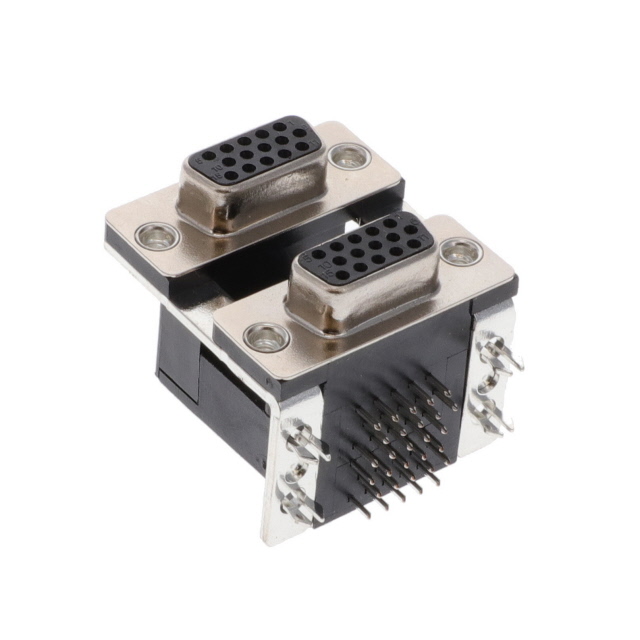

K42X-E15S/S-A4N
ActiveKycon, Inc.
CONN D-SUB HD RCPT 15P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
K42X-E15S/S-A4N
ActiveKycon, Inc.
CONN D-SUB HD RCPT 15P R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K42X-E15S/S-A4N |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | D-Sub, High Density - Stacked |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows [custom] | 3 |
| Number of Rows [custom] | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | High Density |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.30 | |
| 10 | $ 16.40 | |||
| 27 | $ 15.29 | |||
| 54 | $ 14.56 | |||
| 108 | $ 13.87 | |||
| 270 | $ 13.00 | |||
| 513 | $ 12.43 | |||
Description
General part information
K42X-E15 Series
15, 15 Position D-Sub, High Density - Stacked Receptacle, Female Sockets Connector
