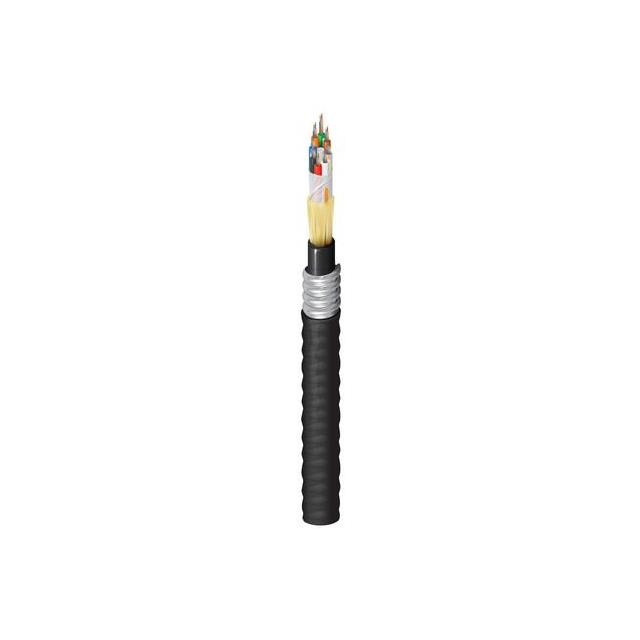

FS2H096NG

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FS2H096NG

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	Rip Cord
Features	96 Fibers
Jacket (Insulation) Diameter [diameter]	0.609 "
Jacket (Insulation) Diameter [diameter]	15.47 mm
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Multimode

Part	Type	Core Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Tensile Strength	Cladding Diameter [diameter]	Jacket (Insulation) Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Style	Features	Features
Belden Inc. FS2H0966G	Multimode	50 µm	0.69 in	17.53 mm	81.6 kg	125 µm	Poly-Vinyl Chloride (PVC)	Black	-40 °C	70 °C	Multiple Fibers
Belden Inc. FS2H096NG	Multimode	50 µm	0.609 "	15.47 mm	81.6 kg	125 µm	Polyethylene (PE)	Black	-40 °C	70 °C	Multiple Fibers	Rip Cord	96 Fibers

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fiber Optic Cable Black Multimode 125µm
