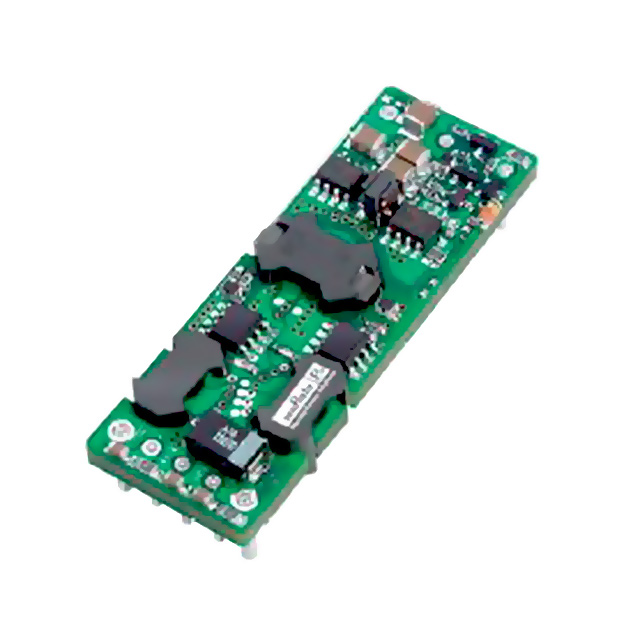

ULE-3.3/20-D24N-C

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 66W

Search across all available documentation for this part.

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 66W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Efficiency	Control Features	Voltage - Input (Min) [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Mounting Type	Type	Applications	Current - Output (Max) [Max]	Voltage - Isolation
Murata Power Solutions Inc. ULE-3.3/20-D12P-C	3.3 V	89.4 %	Active High Enable	9 V	OCP OTP Remote On/Off SCP UVLO	85 °C	-40 °C	1/8 Brick 8-DIP Module	18 V	56.4 mm	0.89 in	2.22 in	22.6 mm	10.4 mm	0.41 "	1	Through Hole	Isolated Module	ITE (Commercial)	20 A	2250 VDC
Murata Power Solutions Inc. ULE-3.3/20-D24NM-C	3.3 V	89 %	Active Low Enable	18 V	OCP OTP Remote On/Off SCP UVLO	85 °C	-40 °C	8-SMD Module	36 V	56.4 mm	0.89 in	2.22 in	22.6 mm	10.4 mm	0.41 "	1	Surface Mount	Isolated Module	ITE (Commercial)	20 A	2250 VDC
Murata Power Solutions Inc. ULE-3.3/20-D24N-C	3.3 V	89 %	Active Low Enable	18 V	OCP OTP Remote On/Off SCP UVLO	85 °C	-40 °C	1/8 Brick 8-DIP Module	36 V	56.4 mm	0.89 in	2.22 in	22.6 mm	10.4 mm	0.41 "	1	Through Hole	Isolated Module	ITE (Commercial)	20 A	2250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	84	$ 56.56

General part information

Isolated Module DC DC Converter 1 Output 3.3V 20A 18V - 36V Input
