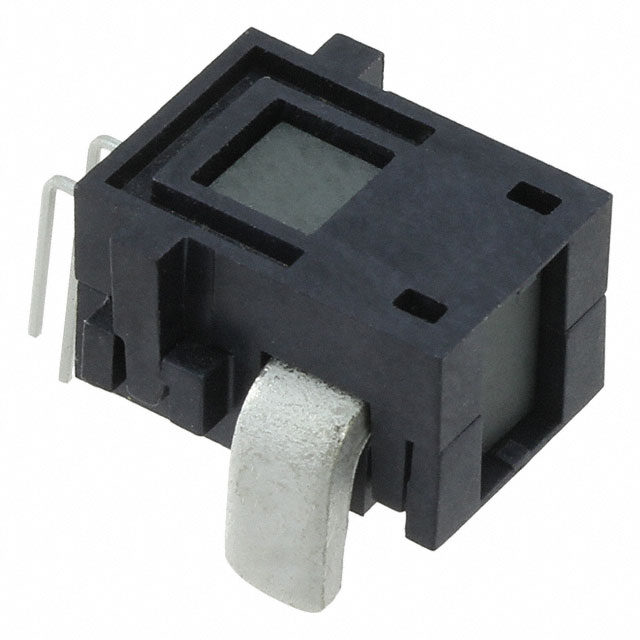

CQ206A
ObsoleteAsahi Kasei Microdevices Corporation
SENSOR CURRENT HALL 50A AC/DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CQ206A
ObsoleteAsahi Kasei Microdevices Corporation
SENSOR CURRENT HALL 50A AC/DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CQ206A |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 46 A |
| Current - Supply (Max) [Max] | 9 mA |
| For Measuring | AC/DC |
| Frequency | 400 kHz |
| Linearity | 1 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 1 µs |
| Sensitivity | 45 mV/A |
| Sensor Type | Hall Effect, Open Loop |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CQ206 Series
Current Sensor 46A 1 Channel Hall Effect, Open Loop Bidirectional Module
