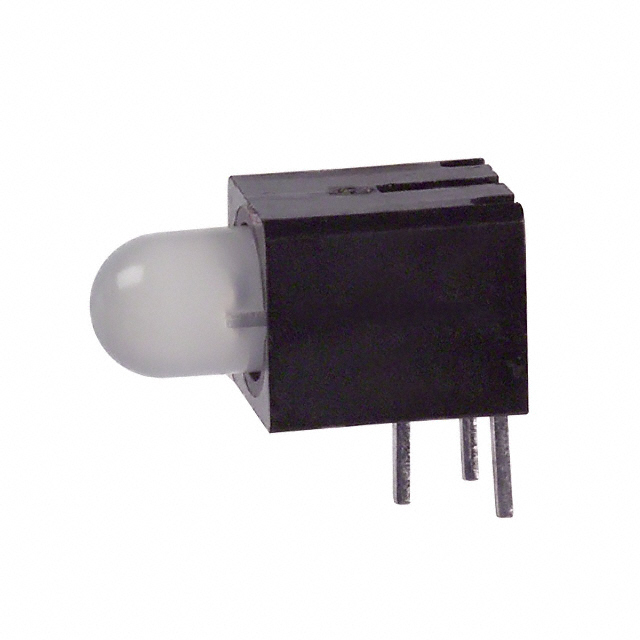

5503505F
ActiveDIALIGHT
LED CBI 5MM GRN/RED RA
Deep-Dive with AI
Search across all available documentation for this part.
5503505F
ActiveDIALIGHT
LED CBI 5MM GRN/RED RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5503505F |
|---|---|
| Color | Red, Green |
| Configuration | Single |
| Current | 10 mA |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Clear |
| Millicandela Rating | 5 mcd, 8 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 65 ° |
| Voltage Rating [custom] | 2.3 V |
| Voltage Rating [custom] | 2.1 V |
| Wavelength - Peak | 565 nm, 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.03 | |
| 10 | $ 2.02 | |||
| 100 | $ 1.49 | |||
| 500 | $ 1.29 | |||
| 1000 | $ 1.22 | |||
| 2000 | $ 1.17 | |||
| 5000 | $ 1.12 | |||
Description
General part information
5503505 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Clear 2.3V Green, 2.1V Red 10mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
