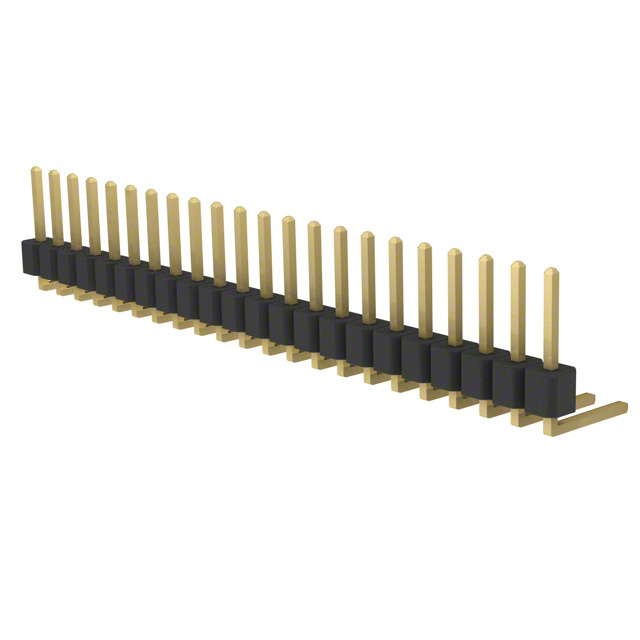

PRPC022SBBN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 22POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC022SBBN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 22POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC022SBBN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC022 Series

Part	Shrouding	Number of Positions Loaded	Number of Rows	Material Flammability Rating	Contact Type	Fastening Type	Insulation Color	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Style	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insulation Material	Contact Material	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Connector Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PRPC022SBAN-M71RC	Unshrouded	All	1	UL94 V-0	Male Pin	Push-Pull	Black	22 positions	0.12 in	3.05 mm	Board to Board Cable	3 A	0.098 in	2.5 mm	Flash	Flash	Through Hole Right Angle	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder
Sullins Connector Solutions PRPC022DAAN-RC	Unshrouded	All	2	UL94 V-0	Male Pin	Push-Pull	Black	44	0.12 in	3.05 mm	Board to Board Cable	3 A	0.098 in	2.5 mm	Flash	Flash	Through Hole	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder	2.54 mm	0.1 in	0.448 in	11.39 mm
Sullins Connector Solutions PRPC022SFAN-RC	Unshrouded	All	1	UL94 V-0	Male Pin	Push-Pull	Black	22 positions	0.12 in	3.05 mm	Board to Board Cable	3 A	0.098 in	2.5 mm	Flash	Flash	Through Hole	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.318 "		Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder				0.537 "	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC022DBAN-M71RC	Unshrouded	All	2	UL94 V-0	Male Pin	Push-Pull	Black	44	0.12 in	3.05 mm	Board to Board Cable	3 A			Flash	Flash	Through Hole Right Angle	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder	2.54 mm	0.1 in					0.197 in	5 mm
Sullins Connector Solutions PRPC022DABN-RC	Unshrouded	All	2	UL94 V-0	Male Pin	Push-Pull	Black	44			Board to Board Cable	3 A	0.098 in	2.5 mm	Flash	Flash	Through Hole	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder	2.54 mm	0.1 in	0.558 in	14.18 mm					0.23 in	5.84 mm
Sullins Connector Solutions PRPC022SAAN-RC	Unshrouded	All	1	UL94 V-0	Male Pin	Push-Pull	Black	22 positions	0.12 in	3.05 mm	Board to Board Cable	3 A	0.098 in	2.5 mm	Flash	Flash	Through Hole	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder			0.448 in	11.39 mm
Sullins Connector Solutions PRPC022DFAN-RC	Unshrouded	All	2	UL94 V-0	Male Pin	Push-Pull	Black	44	0.12 in	3.05 mm	Board to Board Cable	3 A	0.098 in	2.5 mm	Flash	Flash	Through Hole	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.318 "		Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder	2.54 mm	0.1 in		0.537 "	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC022DFBN-RC	Unshrouded	All	2	UL94 V-0	Male Pin	Push-Pull	Black	44			Board to Board Cable	3 A	0.098 in	2.5 mm	Flash	Flash	Through Hole	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.318 "		Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder	2.54 mm	0.1 in	0.637 in	16.17 mm		8.08 mm			0.22 in	5.58 mm
Sullins Connector Solutions PRPC022SACN-RC	Unshrouded	All	1	UL94 V-0	Male Pin	Push-Pull	Black	22 positions	0.32 in	8.13 mm	Board to Board Cable	3 A	0.098 in	2.5 mm	Flash	Flash	Through Hole	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder			0.648 in	16.47 mm
Sullins Connector Solutions PRPC022SBBN-M71RC	Unshrouded	All	1	UL94 V-0	Male Pin	Push-Pull	Black	22 positions			Board to Board Cable	3 A	0.098 in	2.5 mm	Flash	Flash	Through Hole Right Angle	-40 °C	105 ░C	Square	Polybutylene Terephthalate (PBT)	Brass	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	Gold	Breakaway Header	Solder									0.22 in	5.58 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.07
		10	$ 0.81
		100	$ 0.62
		500	$ 0.52
		1000	$ 0.49
		5000	$ 0.43

Description

General part information

PRPC022 Series

Connector Header Through Hole, Right Angle 22 position 0.100" (2.54mm)
