C4842A.41.10

Active

Prysmian Group

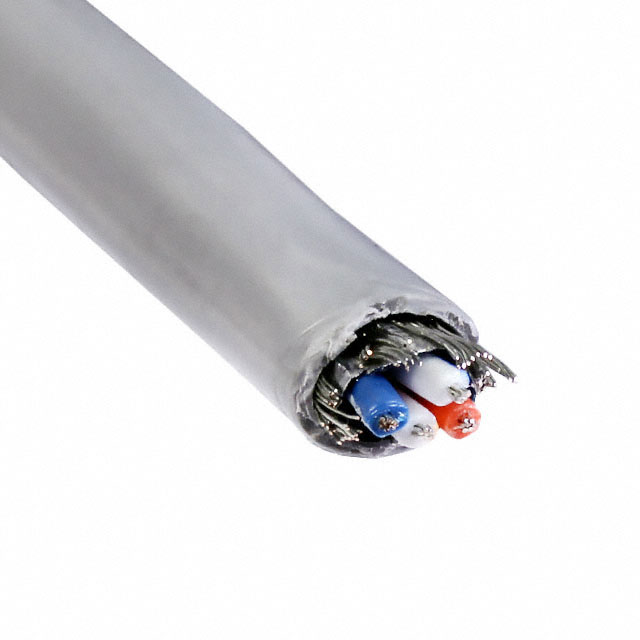

MULTI-PAIR 4COND 24AWG GRAY 100'

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 4COND 24AWG GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C4842A.41.10

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Low Capacitance
Jacket (Insulation) Diameter [diameter]	0.304 in
Jacket (Insulation) Diameter [diameter]	7.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	90 %, 100 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil, Braid
Usage	Computer
Voltage	30 V
Wire Gauge	24 AWG

Part	Voltage	Shield Material	Shield Coverage	Conductor Material	Number of Conductors	Shield Type	Jacket Color	Features	Length	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Wire Gauge	Jacket (Insulation) Material	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Length
Prysmian Group C4842A.41.10	30 V	Copper Flexfoil® Tinned	90 % 100 %	Copper Tinned	4	Braid Foil	Gray	Low Capacitance	15.24 m 304.8 m	50 ft 100 ft	0.304 in	7.72 mm	Polyethylene (PE)	Multi-Pair	32 AWG	7	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	30.5 m	-20 C	80 C	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil, Braid 100.0' (30.5m)
